Hydraulic, Shearing Machine
VARIABLE RAKE ANGLE / NC BACK GAUGE / SHEET SUPPORT
HYDRAULIC, Variable Rake Angle Type, Shearing Machines have robust fabricated body to ensure rigidity & strength. Our machines are capable to perform the accurate and precise cutting needs. The specially designed compact manifolds give smooth and silent operation.

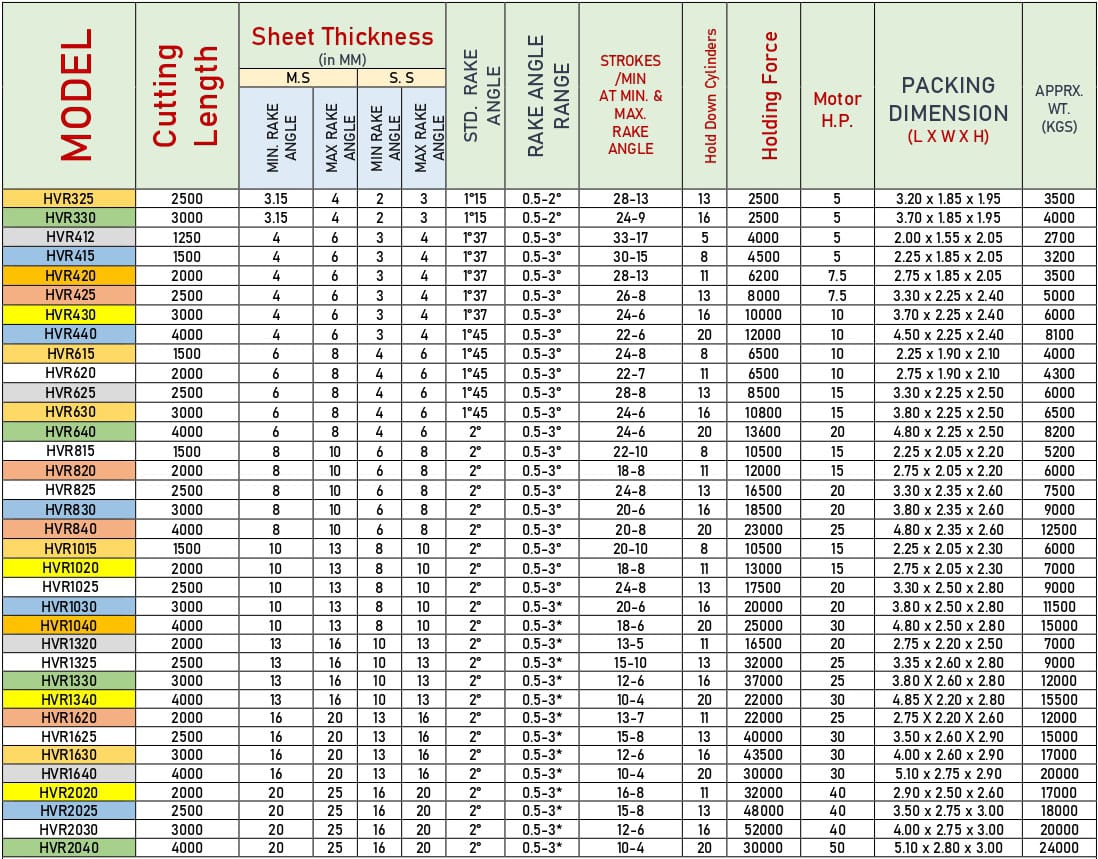

Product Specifications
Standard Accessories
- 4 Edge Cutting Blade
- Front Side Sheet Support
- Front Side Ball Transfer Mounting Plate
- Manual Back Gauge 750 MM
- Hydraulic Power Pack
- Up-Down Foot Switch & Push Button Pendent
- Electricals
- Auto & Manual Selector Switch
- Foundation Bolt Kit
- Inst. & Operational Manual
Optional Accessories
- Pneumatic/ Hydraulic Back End Sheet Support System
- Motorized Back Gauge Or NC Back Gauge with Servo Motor instead of Manual Back Gauge
- Rear End Sheet Stacker
- 2 Years Normal Maintenance Spare Set
Salient Features
- Moving Beam Synchronized by Differential Cylinders
- Rake Angle Adjustable to Suit Thickness & Material
- Adjustable Blade Gap for Accurate Cut
- Hydraulic Sheet Clamping before the Cut
- Front Gauging with Stopper & Scale on Squaring Arm
- Premium HCHCr Four Edged Blades
- Finger Safety Guard is provided
- International Branded Hydraulics & Electricals
