Steel Mill Duty – Lathe Machines (Semi-Norton Type)

Application Area: Steel Mill Roll Turning, Heavy Machine Shops

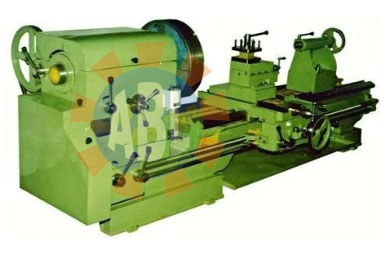

steel-mill-duty-lathe-machines-semi-norton-type-7

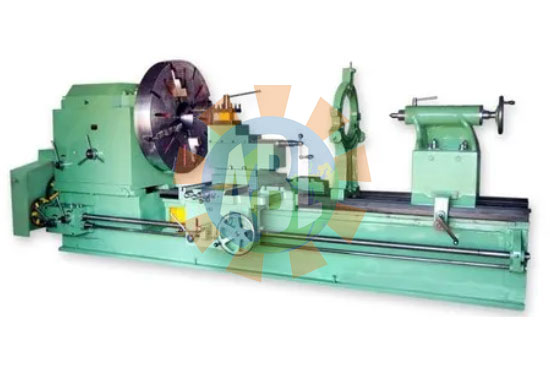

steel-mill-duty-lathe-machines-semi-norton-type-5

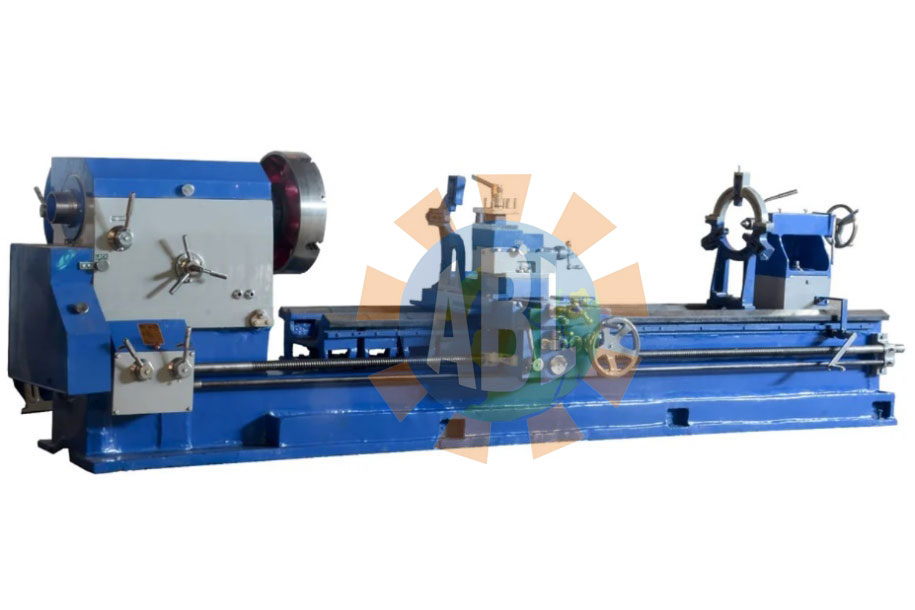

steel-mill-duty-lathe-machines-semi-norton-type-4

steel-mill-duty-lathe-machines-semi-norton-type-2

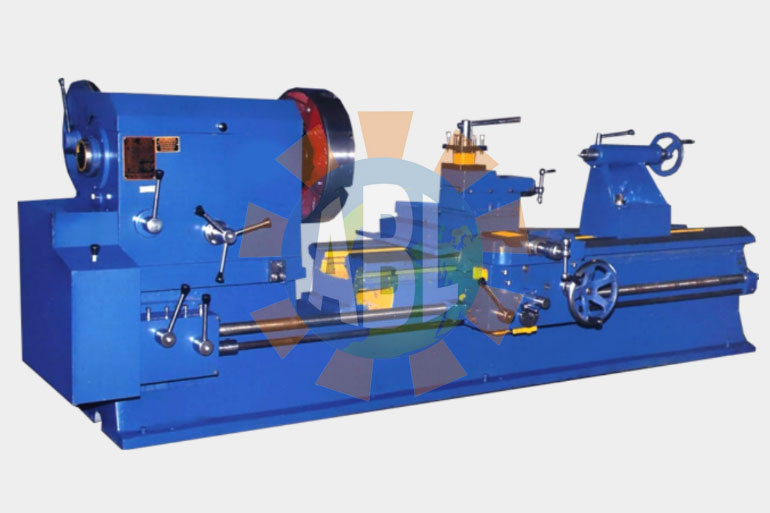

steel-mill-duty-lathe-machines-semi-norton-type-3

steel-mill-duty-lathe-machines-semi-norton-type-1

Product Specifications

MODEL		ABL-1816					ABL-2018						ABL-2420
Bed Length (#)	Ft.	10	12	14	16	20	10	12	14	16	18	20	10	12	14	16	18	20
Bed Width	Inch	18	18	18	18	18	20	20	20	20	20	20	24	24	24	24	24	24
Centre Height	Inch	16	16	16	16	16	18	18	18	18	18	18	20	20	20	20	20	20
Distance Between Centres	Ft	6	8	10	12	16	5.5	7.5	9.5	11.5	13.5	15.5	5	7	9	11	13	15
Spindle Hollow/Bore	Inch	35/8”					41/8”						41/8”
Swing in Gap	Inch	50	50	50	50	50	54	54	54	54	54	54	60	60	60	60	60	60
Swing Over Slide	Inch	24	24	24	24	24	26	26	26	26	26	26	30	30	30	30	30	30
Swing Over Bed	Inch	32	32	32	32	32	36	36	36	36	36	36	40	40	40	40	40	40
Spindle Speeds	Inch	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Width of Gap	Inch	15	15	15	15	15	15	15	15	15	15	15	17	17	17	17	17	17
Lead Screw		2" x 2 TPI					2" x 2 TPI						2" x 2 TPI
Face Plate	Inch	22	22	22	22	22	22	22	22	22	22	22	30	30	30	30	30	30
Power Required	HP	3	3	5	5	7.5	3	3	3	5	7.5	7.5	5	5	5	7.5	7.5	7.5
MODEL		ABL-2422					ABL-2824						ABL-2826
Bed Length (#)	Ft.	12	14	15	18	20	12	16	20	24	26	30	12	16	20	24	26	30
Bed Width	Inch	24	24	24	24	24	28	28	28	28	28	28	28	28	28	28	28	28
Centre Height	Inch	22	22	22	22	22	24	24	24	24	24	24	26	26	26	26	26	26
Distance Between Centres	Ft	7	9	11	13	15	5	9	13	17	19	23	5	9	13	17	19	23
Spindle Hollow/Bore	Inch	35/8”					41/8”						41/8”
Swing in Gap	Inch	64	64	64	64	64	72	72	72	72	72	72	76	76	76	76	76	76
Swing Over Slide	Inch	33	33	33	33	33	36	36	36	36	36	36	40	40	40	40	40	40
Swing Over Bed	Inch	44	44	44	44	44	48	48	48	48	48	48	52	52	52	52	52	52
Spindle Speeds	Inch	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Width of Gap opp. Face Plate	Inch	17	17	17	17	17	20	20	20	20	20	20	20	20	20	20	20	20
Lead Screw		2" x 2 TPI					2" x 2 TPI						2" x 2 TPI
Face Plate	Inch	30	30	30	30	30	40	40	40	40	40	40	40	40	40	40	40	40
Power Required	HP	5	5	5	7.5	7.5	10	10	10	15	15	20	10	10	10	15	15	15
MODEL		ABL-3028						ABL-3230						ABL-3632
Bed Length (#)	Ft.	12	16	20	24	26	30	12	16	20	24	26	30	12	16	20	24	26	30
Bed Width	Inch	30	30	30	30	30	30	32	32	32	32	32	36	36	36	36	36	36	36
Centre Height	Inch	28	28	28	28	28	28	30	30	30	30	30	30	32	32	32	32	32	32
Distance Between Centres	Ft	5	9	13	17	19	23	5	9	13	17	19	23	7	9	13	17	19	23
Spindle Hollow/Bore	Inch	41/8”						41/8”						41/8”
Swing in Gap	Inch	80	80	80	80	80	80	84	84	84	84	84	84	88	88	88	88	88	88
Swing Over Slide	Inch	44	44	44	44	44	44	48	48	48	48	48	48	52	52	52	52	52	52
Swing Over Bed	Inch	56	56	56	56	56	56	60	60	60	60	60	60	64	64	64	64	64	64
Spindle Speeds	Inch	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Width of Gap opp. Face Plate	Inch	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
Lead Screw		21/2” x 2 TPI						21/2” x 2 TPI						21/2” x 2 TPI
Face Plate	Inch	40	40	40	40	40	40	40	40	40	40	40	48	48	48	48	48	48	48
Power Required	HP	10	10	10	15	10	20	10	10	10	15	20	20	10	10	10	15	20	20
MODEL		ABL-4236						ABL-4238						ABL-4442
Bed Length (#)	Ft.	14	16	20	24	26	30	14	16	20	24	26	30	14	16	20	24	26	30
Bed Width	Inch	42	42	42	42	42	42	42	42	42	42	42	42	44	44	44	44	44	44
Centre Height	Inch	36	36	36	36	36	36	38	38	38	38	38	38	42	42	42	42	42	42
Distance Between Centres	Ft	6	8	12	16	18	22	6	8	12	16	18	22	6	8	12	16	18	22
Spindle Hollow/Bore	Inch	41/8”						41/8”						41/8”
Swing in Gap	Inch	96	96	96	96	96	96	100	100	100	100	100	100	108	108	108	108	108	108
Swing Over Slide	Inch	58	58	58	58	58	58	62	62	62	62	62	62	70	70	70	52	52	52
Swing Over Bed	Inch	56	72	72	72	72	72	76	76	76	76	76	76	64	64	64	70	70	70
Spindle Speeds	Inch	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Width of Gap opp. Face Plate	Inch	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
Lead Screw		21/2” x 2 TPI						21/2” x 2 TPI						21/2” x 2 TPI
Face Plate	Inch	48	48	48	48	48	48	48	48	48	48	48	48	48	48	48	48	48	48
Power Required	HP	10	10	15	20	20	10	15	15	20	20	10	10	15	15	20	20	20	20

Note: (#) While enquiring, please confirm the Bed Length along with your selected Machine Model.

Standard Accessories

Optional Accessories

Salient Features

Video Gallery

Image Gallery

ENQUIRE NOW

ABL Machine Tools

COMPANY

Workshop Machines

Sheet Metal Machines

CNC Machines

Small Scale Projects

Surface Equipment

Steel Mill Duty – Lathe Machines (Semi-Norton Type)

Product Specifications

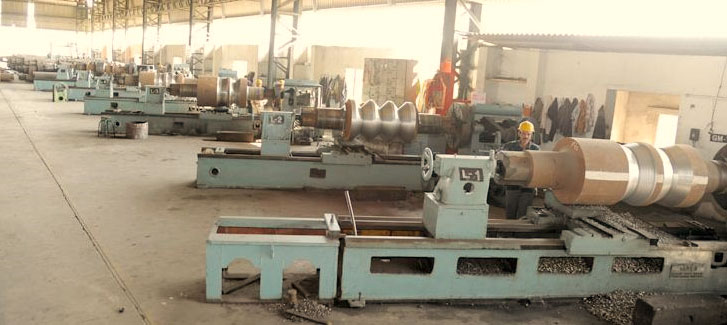

“ABL” Steel Mill Duty Lathes at Several Steel Mills

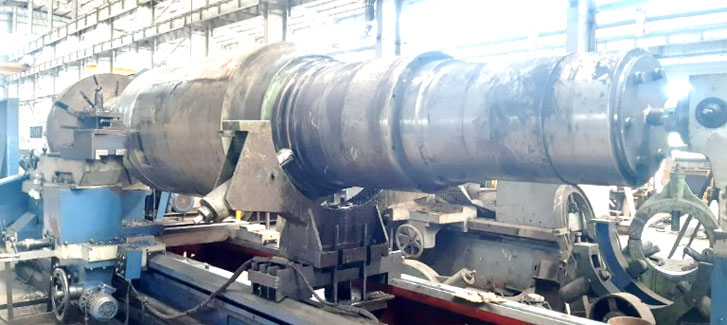

Extra Heavy Machine Structure to Take on Extra Heavy Roll Loads
