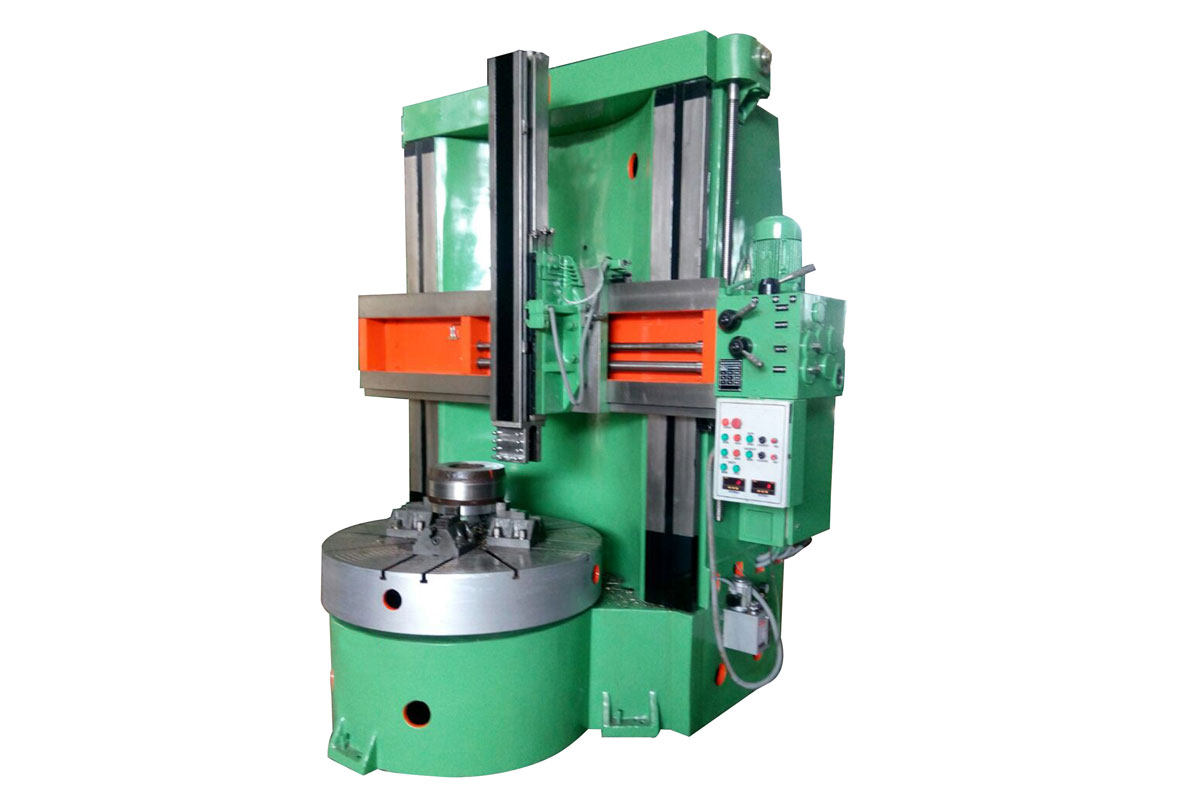

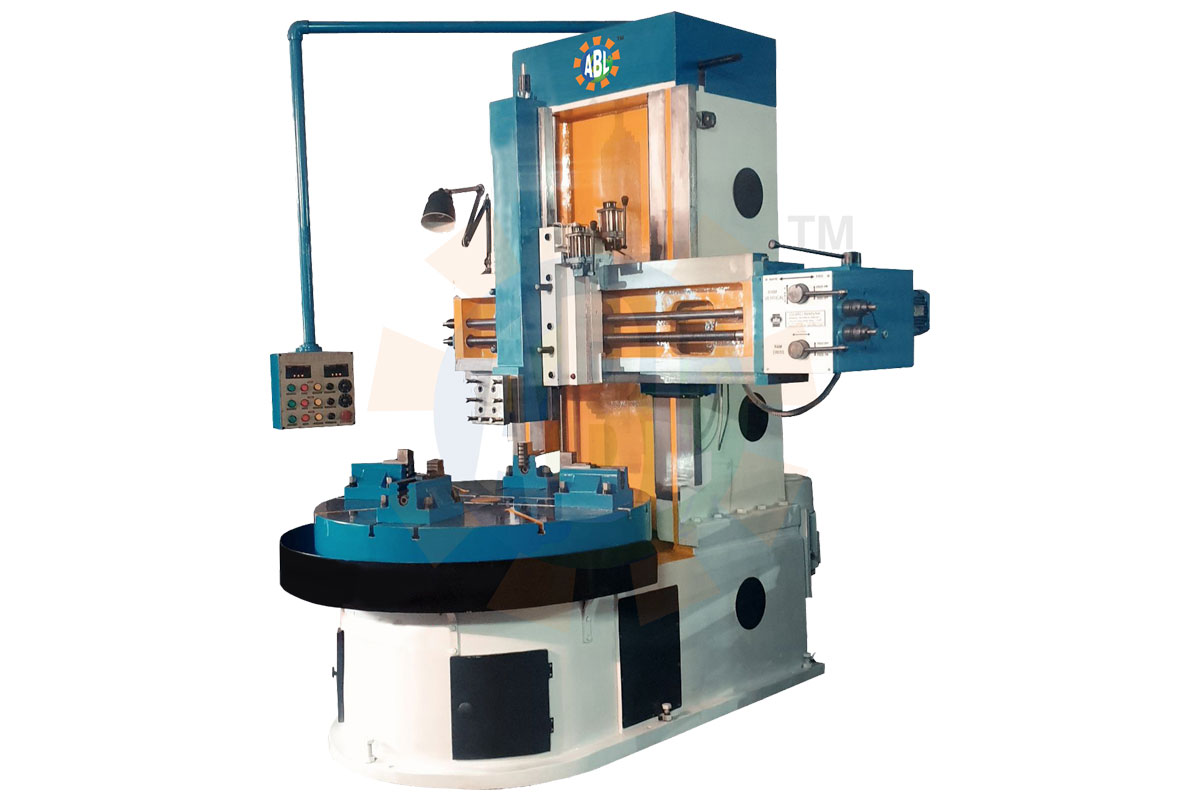

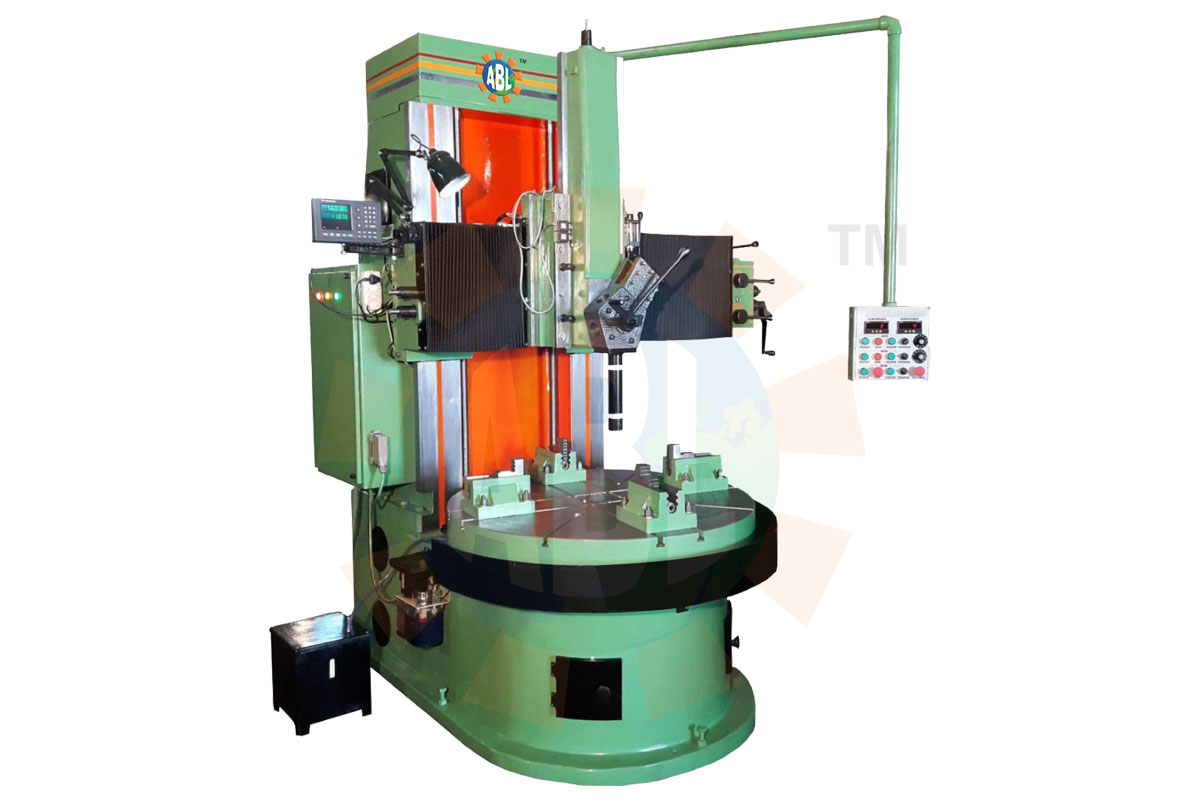

Vertical Turning Lathes – Single Column Type
TURNING / BORING / FACING / DRILLING / MILLING
Vertical Turning Lathes, with single column are suitable for machining faces, internal and external cylindrical surfaces, inner holes, and the internal and external circular cones of many types of small & medium sized work pieces. These can also be used for boring and enlarging holes. The RAM head could be swivelled up to +/- 35° to cover vide angular range of turning.
Product Specifications
| Model | VTSC-1.0 | VTSC-1.2 | VTSC-1.5 |
|---|---|---|---|
| TABLE DIAMETER | 1000 | 1200 | 1500 |
| MAX. TURNING DIAMETER | 1200 | 1350 | 1750 |
| WORKING HEIGHT UNDER CROSS RAIL | 700 | 1000 | 1200 |
| NO. OF RAM HEAD ON CROSS RAIL | 1 | 1 | 1 |
| NO. OF SIDE RAM HEAD (Optional) | N/A | 1 | 1 |
| VERTICAL TRAVEL OF RAM HEAD | 450 | 550 | 650 |
| SWIVEL ANGLE OF RAM HEAD | +/- 35° | +/- 35° | +/- 35° |
| NO. OF TABLE SPEEDS | 6 | 6 | 6 |
| RANGE OF TABLE SPEEDS (RPM) | 9 – 90 | 9 – 90 | 9 – 90 |
| FEEDS FOR HORIZONTAL & VERTICAL TRAVEL | 6 | 6 | 6 |
| RANGE OF FEEDS, HORIZONTAL & VERTICAL | 1.5 – 9 | 1.5 – 9 | 1.5 – 9 |
| MAIN MOTOR (HP) | 7.5 | 10 | 15 |
| MOTOR FOR VERTICAL TRAVEL OF CROSS RAIL (HP) | 2 | 2 | 2 |
| RAPID MOTOR (HP) | 2 | 2 | 2 |
Note: * All dimensions are in MM, unless specified Higher Sizes shall be provided on request
Standard Accessories
- One tilting ram head on Cross Rail
- Electrical Motors
- Power cross rail clamp
- Pressurized table lubrication
- Foundation Bolt Kit
- Face plate type chuck with clamping jaws
- Coolant System
- Centralized Motorized Lubrication Pump
Optional Accessories
- NC / PLC Controllers
- Turret Head on Main RAM Head
- Side RAM Head
- Below Covers on Guide ways
- Multi-Purpose Milling & Drilling Head on Side Column
- 3 Axes Digital Readout System
Salient Features
- Single Piece, Heavy Duty Machine Bed
- Heavy duty cross - ribbed Columns & Cross Rail
- Hardened, ground gear & shafts
- Centralized Lubrication System
- Motorized Movement of RAM heads & cross Rail
- Smooth shifting of feed & speeds levers
