CNC Flat Bed Lathe

Hayat Series [SY] / Flat Bed Type /Heavy Machine Structure

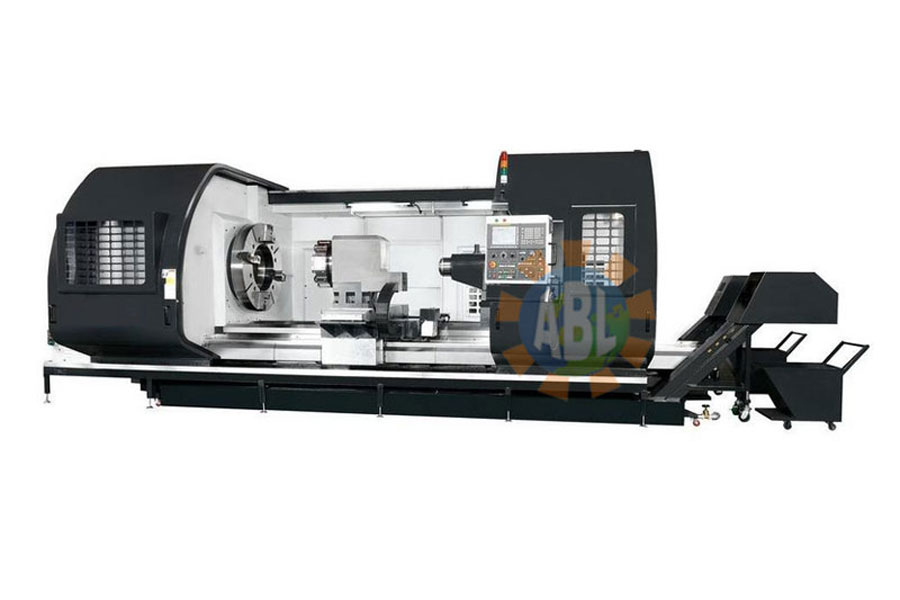

CNC Flat Bed Lathe Machine is “HAYAT” series of ABL which means “life”. As the name suggests, the machine adds life to the heavy-duty workshops for wide range of metal removal & other applications. HAYAT Lathes offer heavy-duty, high-precision Flat Bed CNC Lathes designed to effortlessly manage the workpieces in the industry. Embrace the power to expand your machining capabilities and transform challenges into routine.

FLAT BED CNC LATHE RANGE
Bed Width - 500
Admit Between Centre - 1500 mm to 5000 mm

Overview
Hayat Series / CNC Lathe	ABL-SY25	ABL-SY30	ABL-SY35	ABL-SY40
Swing Over Bed	660 MM (26”)	770 MM (30”)	890 MM (35”)	1000 MM (40”)
Swing Over Cross Slide	370 MM (14.5”)	480 MM (19”)	600 MM (24”)	700 MM (28”)
Center Height	330 MM (13”)	385 MM (15”)	450 MM (18”)	500 MM (20”)
Bed Width	500 MM (20”)	500 MM (20”)	500 MM (20”)	500 MM (20”)
Spindle Bore	A2-11 (4”)	A2-11 (4”)	A2-11 (6”)	A2-11 (6”) / A2-15 (9”)
Distance Between Centers	1500 / 2000 / 3000 MM	1500 / 2000 / 3000 / 4000 / 5000 MM

Application Areas

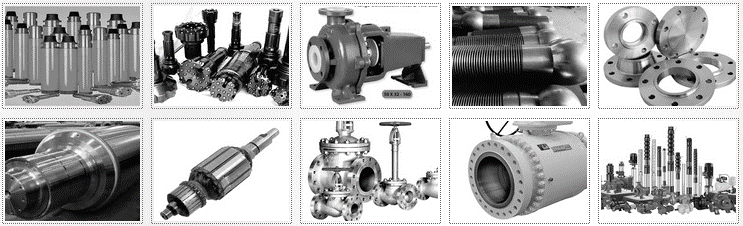

Submersible Pumps, Oil & Gas, Pump & Valves, Motor Shafts, Rotors, Forgings, Tie Rods Etc.

Product Specifications

MODEL	ABL-SY25	ABL-SY30	ABL-SY35	ABL-SY40
CAPACITY
Swing Over Bed	660 MM	770 MM	890 MM	1000 MM
Swing Over Cross Slide	370 MM	480 MM	600 MM	700 MM
Centre Height	330 MM	385 MM	450 MM	500 MM
Bed Width	500 MM	500 MM	500 MM	500 MM
Distance Between Centres	1500/2000/3000 MM	1500 / 2000 / 3000 / 4000 / 5000 MM
SPINDLE
Spindle Nose/ Bore	A2-11 (4”)	A2-11 (4”)	A2-11 (6”)	A2-11 (6”) / A2-15 (9”)
Speed Range	L2: 25~75 rpm	L2: 25~75 rpm	L2: 25~53 rpm	L2: 15~50 rpm
	L1: 76~165 rpm	L1: 76~165 rpm	L1: 54~118 rpm	L1: 51~110 rpm
	H2: 166~540 rpm	H2: 166~540 rpm	H2: 119~386 rpm	H2: 111~260 rpm
	H1: 541~1200 rpm	H1: 541~1200 rpm	H1: 387~860 rpm	H1: 261~600 rpm
Spindle Centre	MT5	MT5	MT5	MT5
Width of Slide	280 MM	280 MM	280 MM	280 MM
Turret Type	H4 or V8 Hydraulic	H4 or V8 Hydraulic	H4 or V8 Hydraulic	H4 or V8 Hydraulic
Tool Size	H4 or V8, 25×25	H4 or V8, 25×25	H4 or V8, 25×25	H4 or V8, 25×25
X-Axis Travel	450 MM	450 MM	450 MM	450 MM
Z-Axis Travel	1380/1890/2900	1380 / 1890 / 2900 / 3900 / 4900 MM
X-Axis Rapid Travel	5M / MIN – 32xP5	5M / MIN – 32xP5	5M / MIN – 32xP5	5M / MIN – 32xP5
Z-Axis Rapid Travel	6M / MIN – 35xP10	6M / MIN – 35xP10	6M / MIN – 35xP10	6M / MIN – 35xP10
TAIL STOCK
Quill Diameter	Standard Ø: 105 MM (4”) / Optional Ø: Rotating Quill 145 MM (5.7”)
Quill Travel	200 MM	200 MM	200 MM	200 MM
Quill Taper	MT6	MT6	MT6	MT6
MOTORS
X-Axis Servo Motor	1.6 Kw	1.6 Kw	1.6 Kw	3.0 Kw
Z-Axis Servo Motor	3.0 Kw	3.0 Kw	3.0 Kw	4.0 Kw
Spindle Motor	Standard: 15/18.5 Kw : Optional: 18.5 / 22 Kw, 22 / 26 Kw
Coolant Pump	0.45 Kw	0.45 Kw	0.45 Kw	0.45 Kw
Hydraulic Pump	1 Kw	1 Kw	1 Kw	1 Kw
CNC Controllers	FANUC / Siemens	FANUC / Siemens	FANUC / Siemens	FANUC / Siemens

Standard Accessories

Optional Accessories

Salient Features

HAYAT Series CNC Flat Bed Lathes from ABL are extensively used in shaping various parts. These computer-controlled lathes are the workhorses of the machining world, renowned for their ability to handle heavy-duty tasks with precision. These lathes excel in turning, milling, and drilling metals and other materials, making them indispensable multitaskers in the machining industry. These machines play a pivotal role in crafting components for a wide range of machinery and devices.
