CNC, Heavy Duty, Vertical Turning Lathe
CVT SERIES / HEAVY MACHINE STRUCTURE / CNC CONTROLLERS / HEAVY JOB LOADS ON TABLE

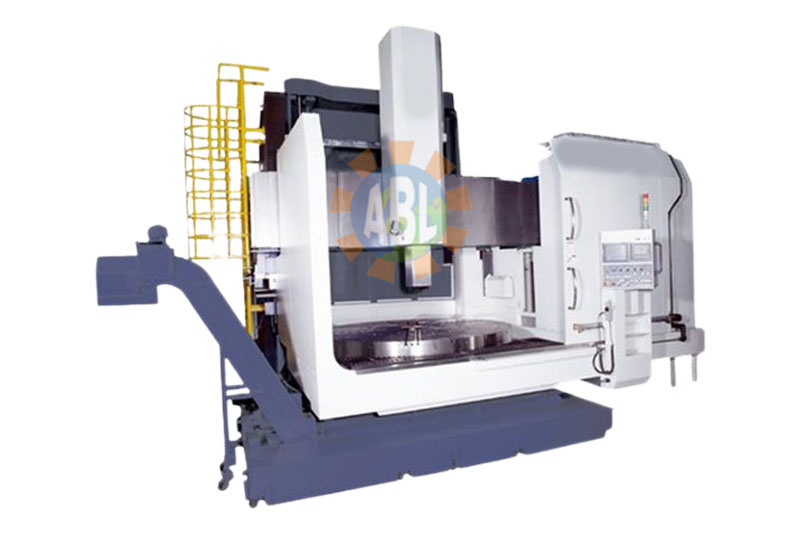

Heavy Duty, CNC Vertical Turning Lathe Machine, was designed with the high output user in mind. Massive castings and extra-wide way systems assure accurate and stable machining on all of our vertical turning lathes. Heavy duty transmissions, which are standard on larger models, allow stock removal at ease. We offer both Turret and Ram style machines.
Product Specifications
| Models | CVT-1.0 | CVT-1.2 | CVT-1.5 | CVT-2.0 | CVT-2.5 | CVT-3.0 |
|---|---|---|---|---|---|---|
| CAPACITY | ||||||
| Table Diameter (Manual Chuck) | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
| Max. Turning Diameter | 1200 | 1600 | 1800 | 2200 | 2700 | 3200 |
| Max. Turning Height | 600 | 1000 | 1200 | 1200 | 1200 | 1200 |
| Max. Work piece Weight (Kgs) | 3500 | 4500 | 6000 | 8000 | 12000 | 15000 |
| TABLE | ||||||
| Range of Table Speeds (rpm) | 5-300 | 4-240 | 4-240 | 3-180 | 2-120 | 1.3-80 |
| Change Gear Speed | 2-Steps | 2-Steps | 2-Steps | 2-Steps | 2-Steps | 2-Steps |
| TRAVEL | ||||||
| X Axis Rapid Rate (M/m/min.) | 6 | 6 | 6 | 6 | 6 | 6 |
| X Axis Horizontal Travel | +600 – 200 | +750 -250 | +950 – 250 | +1050 -300 | + 1350 -300 | +1750 -300 |
| Z Axis Rapid rate | 6 | 6 | 6 | 6 | 6 | 6 |
| Z Axis Horizontal Travel | 600 | 900 | 900 | 1200 | 1200 | 1200 |
| ELECTRIC MOTOR | ||||||
| Spindle Motor (Kw) | AC 22/37 | AC 37/45 | AC 37/45 | AC 45/55 | AC 45/55 | AC 55/65 |
| CNC Control | FANUC/SIEMENS | |||||
Standard Accessories
- Manual Chuck with Jaws
- Automatic Lubrication System
- Work Light
- Coolant System
- Complete Splash Guard
- Telescopic Covers & Bellows
- CNC System
- VVFD for Table
- Operational & Maint. Manual
Optional Accessories
- Moving Cross Rail
- AC for Control Cabinet
- Chip Conveyor
- Hydraulic Chuck
- Extend Travel of Ram
- Grinding Attachment
- Angular Milling Attachment
- Live Spindle with C-Axis
- Automatic Tool Changer (ATC)
- Coolant Through Spindle
- Jig & Fixtures
- Linear Scales for X/Z axis
Salient Features
- Our high-density castings are heavier with less webbing. This means less harmonics and less thermal variation
- Options like a 2-speed gearbox and even dual ram capability on specific requirements.
- Heavy duty transmissions, which are standard on larger models, allow stock removal at high spindle speeds.
- All geometric accuracies confirming to national & intl. standards.
