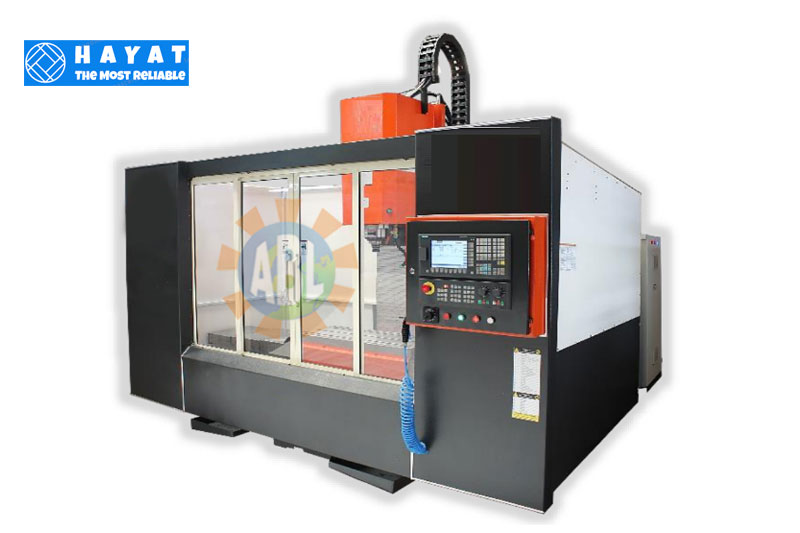

CNC, Vertical Machining Center
HAYAT SERIES / PRECISION /HEAVY MACHINE STRUCTURE
CNC Vertical Machining Center is “HAYAT” series of ABL which means “life”. Our VMC’s are creating the parts and die/moulds that matter with precision, accuracy, repeatability and surface finishes that virtually eliminate bench work.
Product Specifications
| SPECIFICATION | UNIT | VMC-5030B | VMC-7040B | VMC-9050B |
|---|---|---|---|---|
| TABLE | ||||
| Table Size | mm | 700 x 350 | 800 x 400 | 900 x 450 |
| T-Slot/Width/ Centre Distance | mm | 3/20/80 | 3/20/100 | 3/20/130 |
| T-Slot Nut Size | mm | M 16 Standard ‘T’ Nuts | ||
| Maximum Load on Table | Kgs | 300 | 600 | 800 |
| Distance from Floor to Table | mm | 700 | 775 | 825 |
| CAPACITY | ||||
| X-Traverse (Longitudinal) | mm | 500 | 700 | 900 |
| Y-Traverse (Cross Traverse) | mm | 300 | 400 | 500 |
| Z-Traverse (Vertical Traverse) | mm | 400 | 550 | 750 |
| Distance from Spindle Face to Table Top (Min/Max) | mm | 100-400 | 120-550 | 120-750 |
| Spindle Centre to Column Face | mm | 300 | 400 | 500 |
| Guide Ways | Type | LM Roller | ||
| MAIN SPINDLE | ||||
| Spindle | Std. | BT-40 | ||
| Spindle Speed | RPM | 1 – 6000 | ||
| Spindle Power | Kw | 5.5 | 7.5 | 7.5 / 11 |
| Spindle Bearing Lubrication | Type | Grease Injection | ||
| FEED | ||||
| Rapid Traverse (X-Y-Z Axis) | m/min | 17 | ||
| Cutting Feed | mm/min | 1 – 10,000 | ||
| TOOL CAPACITY | ||||
| Max. Tool Length | mm | 150 | 175 | 200 |
| Max. Tool Weight | Kg. | 5 | 6 | 6 |
| Max. Tool Diameter | mm | 80 | ||
| AUTOMATIC TOOL CHANGER (ATC) | ||||
| Tool Shank | Std. | BT-40 | ||
| No. of Tools | Nos. | 12 | ||
| Maximum Tool Weight | Kg | 6 | ||
| Total Tool Weight | Kg | 80 | ||
| Maximum Tool Length | mm | 250 | ||
| Maximum Tool Dia (Adjacent Pocket Full) | mm | 105 | ||
| Maximum Tool Dia (Adjacent Pocket Empty) | mm | 130 | ||
| Air Pressure | Kg/cm2 | 4 – 6 | ||
| DIMENSIONS (Approx) | ||||
| Net Weight | Kg | 2500 | 3500 | 4200 |
| Machine (L x W x H) | m | 1.8 x 2.0 x 2.2 | 2.1 x 2.5 x 3.1 | 2.5 x 3.0 x 3.5 |
| GENERAL INFORMATION | ||||
| Controller (On Selection Basis) | Make | Siemens 808 Advance / Siemens 828D / Fanuc Oi-Mf | ||
| Coolant Tank Capacity | Ltrs | 150 | 200 | 200 |
| Lubrication | Type | Automatic Centralized | ||
| Total Connected Load | Kw | 10 | 15 | 18 |
| Hydraulic Materials | Make | Yuken / Rexroth / Huade | ||
| Linear Guideways / Ball Screws | Make | Hiwin / PMI | ||
Standard Accessories
- LM Guideways for X, Y & Z Axis
- Spindle with BT-40, Standard RPM 1-6000
- Spindle Motor & Servo Drives for X, Y & Z Axis
- Air Blast Provision for Spindle Motor Cleaning
- High Precision Ball Screws with Nuts
- Basic Coolant System with Accessories
- Machine Enclosure Guard
- Air Condition for Elec. Panel
- Other Electricals, Air Gun
- Absolute Built-in Encoders in Motors
- Telescopic Covers
- Centralized Automatic Lubrication
- Machine Lamp
Optional Accessories
- Automatic Tool Changer
- Extra mobile Pulse Generator – MPG
- Wash Gun
- Foot Switch
- Anti-Vibration Mounting Pads
- Chip Conveyor
- Flush Coolant
- Voltage Stabilizer
- Higher Sizes, available on request
