Hydro-Mechanical Plate Rolling Machine
3 ROLL TYPE / MOTORIZED BOTTOM ROLLS / PYRAMID & PRE-PINCH TYPE
HYDRO-MECHANICAL Plate Rolling Machines produced by ABL are able to bend 6 mm to 20 mm in thickness and width ranging from 2000 mm to 3000 mm. Top Roll is fixed & the Bottom Rolls move up & down through hydraulic cylinders. Both Bottom Rolls are power driven by planetary gear box with electric or hydraulic motor. These machines come with built-in Cone Bending Feature & also convenient hydraulic end dropper for job removal after bending.
Product Specifications
| Model | Capacity (Width/Thk) | Roll Dia. Top / Bottom | Motor Power (HP) | ||
|---|---|---|---|---|---|
| Width | Bending Thickness | Pre-Bending Thickness | |||
| 3RHM-2006 | 2000 | 06 | 04 | 170/170 | 05 |
| 3RHM-2008 | 2000 | 08 | 06 | 200/180 | 7.5 |
| 3RHM-2010 | 2000 | 10 | 08 | 210/190 | 7.5 |
| 3RHM-2012 | 2000 | 12 | 10 | 240/210 | 7.5 |
| 3RHM-2016 | 2000 | 16 | 12 | 280/250 | 10 |
| 3RHM-2020 | 2000 | 20 | 16 | 310/280 | 15 |
| 3RHM-2506 | 2500 | 06 | 04 | 190/170 | 7.5 |
| 3RHM-2508 | 2500 | 08 | 06 | 210/190 | 10 |
| 3RHM-2510 | 2500 | 10 | 08 | 225/200 | 12.5 |
| 3RHM-2512 | 2500 | 12 | 10 | 240/210 | 12.5 |
| 3RHM-2516 | 2500 | 16 | 12 | 270/250 | 15 |
| 3RHM-2520 | 2500 | 20 | 16 | 300/280 | 20 |
| 3RHM-3006 | 3000 | 06 | 04 | 210/200 | 7.5 |
| 3RHM-3008 | 3000 | 08 | 06 | 240/210 | 10 |
| 3RHM-3010 | 3000 | 10 | 08 | 270/250 | 10 |
| 3RHM-3012 | 3000 | 12 | 10 | 300/270 | 15 |
| 3RHM-3016 | 3000 | 16 | 12 | 330/300 | 20 |
| 3RHM-3020 | 3000 | 20 | 16 | 370/340 | 25 |
Standard Accessories

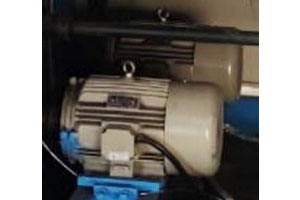

- Roll Driving Motors

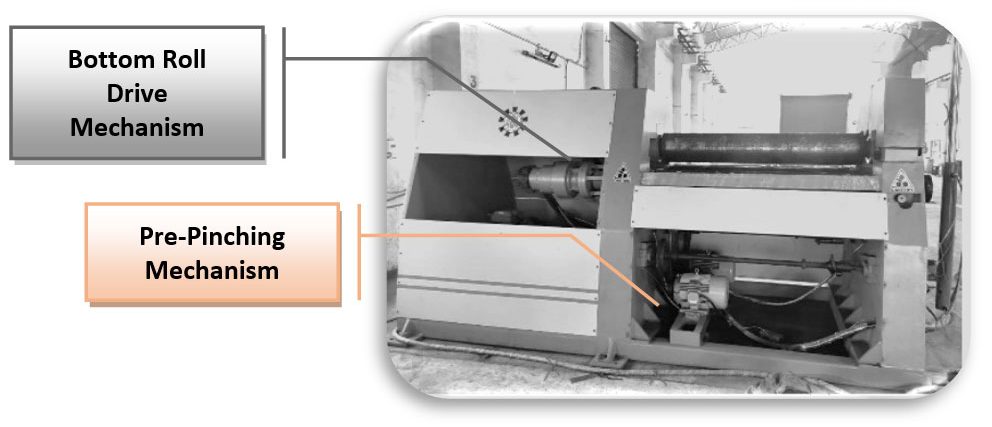

- Motorized Pre-Pinching System
- Movable Operator’s Control Pendent
- Lubrication Pump
- Foundation Bolt Kit
- Instruction & Maintenance Manual
Optional Accessories
- Hydraulic End Dropper
- JIB Crane for Roll Sheet Support
- Motorized Mechanism for Pre-Pinching
- Extended Roll End
- Section Bending Caps/Die Heads
- Digital Readout Scales
Salient Features
Video Gallery
Image Gallery

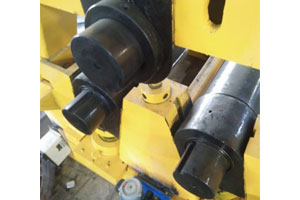

Extended Rolls for Section Bending

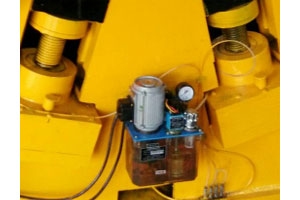

Centralized Lubrication System
Motorized Up-Down Bottom Rolls

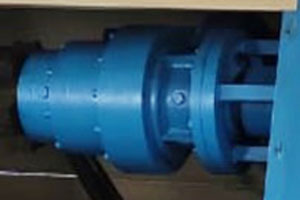

Independent Bottom Roll Drive
