Hydraulic Hose Crimping Machine
SWALLOW TAIL TYPE /12 MOLD SETS/OIL-GAS-WATER-AUTOMOBILE PIPES

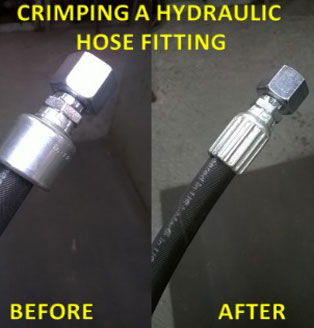

“HAWK” Series – HYDRAULIC Hose Crimping is for crimping the pipe fitting assembly, which applies the contracting force of the matched metal joint through the die of the crimping machine, and firmly presses the metal joint on the supporting high-pressure oil pipe or automobile of the engineering machinery.
Product Specifications
| MODELS | HHC-450T |
|---|---|
| Hose Crimping Range | Φ6 ~ φ64 |
| Mold Size (Swallow Tail Type) | 105 x 65 |
| Number of Mold Sets | 12 Sets |
| Main Drive Motor | 4 KW |
| Oil Pump Discharge | 14.5 L |
| Maximum Buckle Pressure | 440T |
| System Rated Pressure | 31.5 MPa |
| Head Material | CR12 |
Features
- Suitable for Bending Adjustable Angle Range from 0˚ to 180˚
- Capable of Both – Manual & Automatic Functioning
- Bend Angle can be adjusted as per Specific Requirements
- Convenient Push Button Controlled Operator’s Pendent
- Provided with Limit Switches for Angle Setting for achieving more Accurate Angles
Standard Accessories
- Electricals with Control Panel

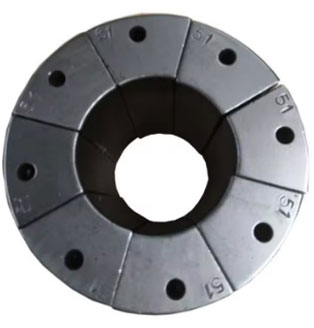

- 12 Mold Sets
- Instruction & Maintenance Manual
Optional Accessories
- Extra Set of Mold
- 2 Years Maintenance Sets
