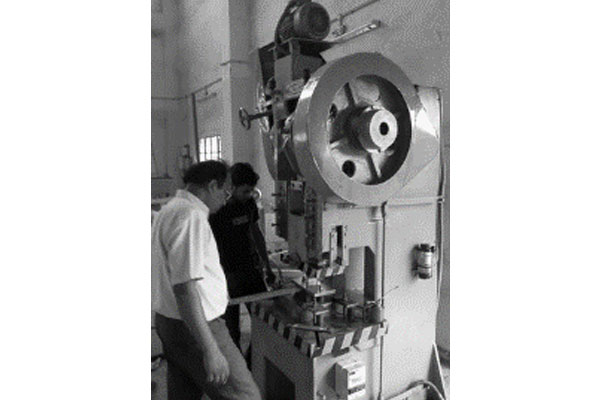

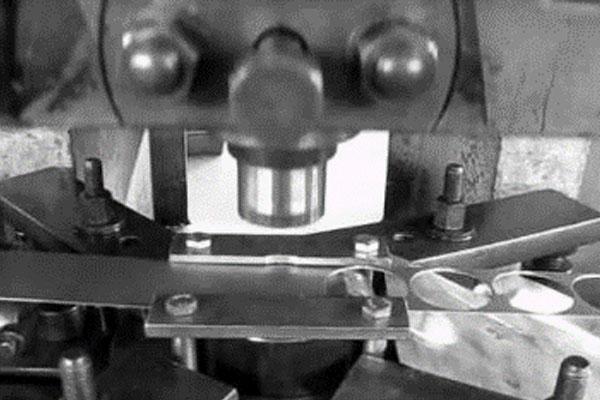

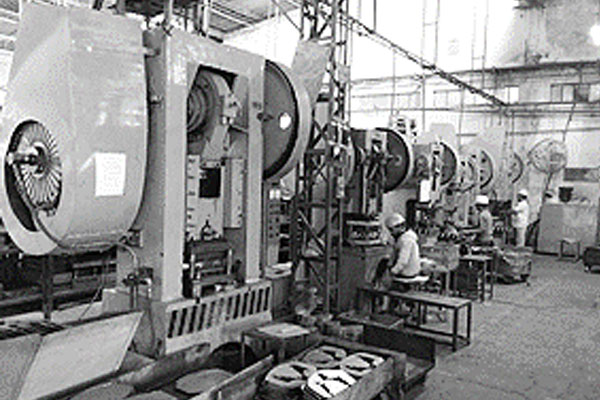

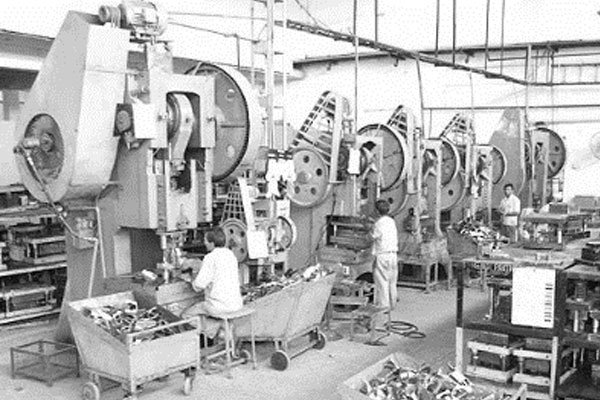

Power Press Machine (C-Frame Type)

OPEN THROAT TYPE / 5 to 300T CAPACITY

MECHANICAL C-Frame Power Press Machine is fabricated from graded rolled steel plates. The interlocked design put direct support to the frame. This frame is strain free and eliminates welds at load supports ensuring best accuracy.

Product Specifications

MODEL		CP-5	CP-10	CP-20	CP-30	CP-50	CP-75	CP-100	C-150	CP-200	CP-250	CP-300
CAPACITY IN TONS		5	10	20	30	50	75	100	150	200	250	300
AREA OF BOLSTER (L-R x F-B)		350 x 300	435 x 350	500 x 375	600 x 400	625 x 475	700 x 550	900 x 600	1000 x700	1150 x 800	1200 x 850	1350 x 950
DIST. BED TO RAM BOTTOM		210	280	300	360	400	425	455	500	550	600	700
SLIDE STROKE LENGTH ADJUSTABLE OR FIX		40	50	65	85	100	110	125	125	150	150	175
ADJUSTMENT OF SLIDE		25	25	28	30	35	40	45	50	60	70	75
SHANK HOLE		25	28	30	35	40	45	50	55	63	65	70
NO. OF RAM STROKES		55	50	50	45	45	40	40	35	30	30	25
MAIN MOTOR		1	2	2	3	5	7.5	10	15	20	25	30
MOTOR PULLEY DIA		B	B	B	B	B	B	B	B	C	C	C
HEIGHT FROM FLOOR TO BOLSTER TOP		625	325	675	700	725	750	775	825	825	825	850
BED OPENING DIA		75	100	100	125	150	175	200	225	250	275	300
AIR PRESSURE FOR PNEUM. CLUTCH (KG/CM2)		5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
[OPTIONAL] DIE CUSHION	CAPACITY	–	1.6	1.6	3	5	7.5	10	15	20	25	30
	STROKE LENGTH	–	25	25	45	65	75	85	100	110	110	120
	AIR PRESSURE	5	5	5	5	5	5	5	5	5	5	5
