Chain Link Fencing Machine
SMALL & ECONOMICAL PROJECTS / LOW INVT. PROJECTS

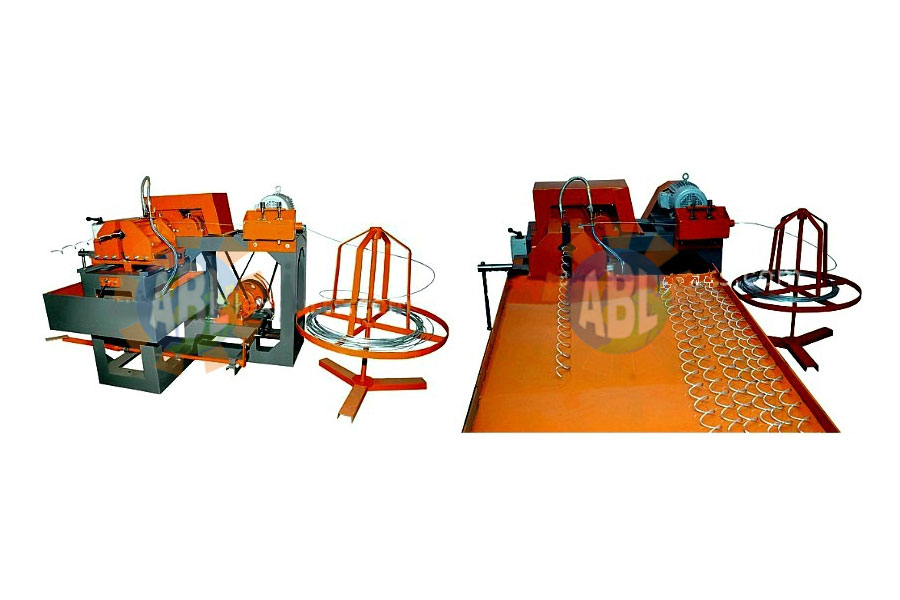

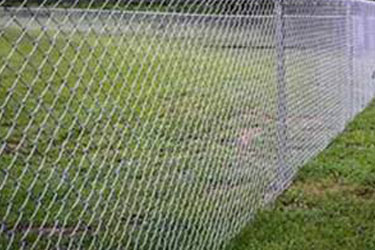

Chain Link Fencing Machine was introduced by us for the small entrepreneurs willing to start their businesses from low investment. This machine is an easy to use machine for manufacturing chain link fences that are used to border the agricultural land, industrial premises etc.
Product Specifications
| Model | CLF-STAR |
|---|---|
| Mesh Capacity (mm) | 25 – 150 |
| Thickness (mm) | 2 – 4 mm |
| Width | As Per Request |
| Production Capacity | 8.0 to 8.5 m/min |
| Electric Motor (HP) | 3 |
| Net / Gross Weight (Kg) | 550 / 900 |
| Overall dimensions (m) | 1.7 x 1.4 x 1.4 |
| Shipping Volume (m3) | 3.50 |

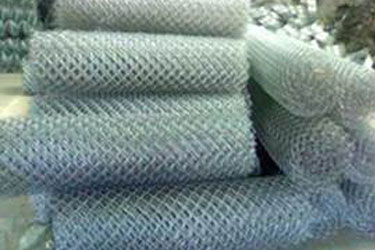

Weight Chart (KG)
| SIZE | 14 SWG (2 MM) | 12 SWG (2.6 MM) | 10 SWG (3 MM) | 8 SWG (4 MM) |
|---|---|---|---|---|
| 2″ x 4’ x 50’ | 22 | 36 | 48 | 85 |
| 2.25″ x 4’ x 50’ | 20 | 32 | 43 | 76 |
| 2.5″ x 4’ x 50’ | 16 | 27 | 36 | 64 |
| 3″ x 4’ x 50’ | 14 | 22 | 33 | 59 |
| 4″ x 4’ x 100’ | 22 | 37 | 48 | 87 |
| 5″ x 5’ x 100’ | 21 | 33 | 44 | 78 |
| 6″ x 5’x 100’ | 18 | 27.5 | 37 | 66 |
Standard Accessories
- 3 HP Motor
- On/Off Switch
- Set of tooling for one mesh size, De-Coiler Stand
- Instructional Manual
- Safety Guard
- Operational Manual
Salient Features
- Precisely Designed for fencing purposes
- Semi-Automatic Machine
- Cutting and Knuckling (weaving) by manual process
- Three Speed machine (with 3 step pulley)
- Slow Speed for mesh size: 100 to 150 mm
- Medium Speed for mesh size: 50 to 90 mm
- High Speed for mesh size: 25 to 45
