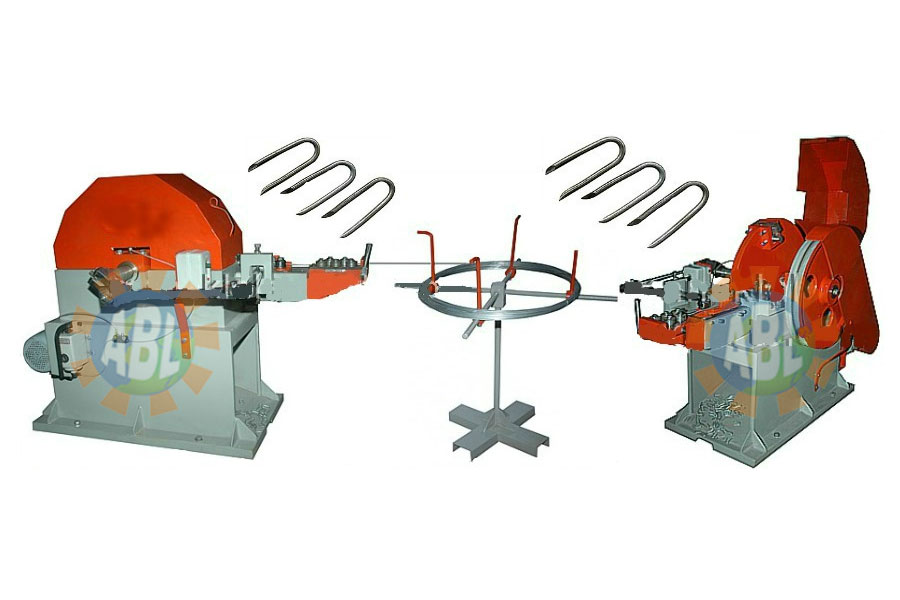

Fence Staple (U-Nail) Making Machine
SMALL & ECONOMICAL PROJECTS / LOW INVT. START-UPS

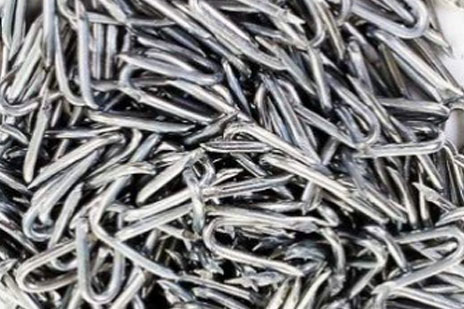

Fence Staple Making Machine is a most commonly used machine for making Fence Clamps, Staples or U-Nails. The staple nails are with sharpened ends that could either be hammered with wooden post or ground. The clamps could also be used to clamp multiple meshes to each other.
Product Specifications
| MODEL | GEMINI-150 | GEMINI-300 |
|---|---|---|
| Type | SINGLE Stroke | DOUBLE Stroke |
| Wire Diameter (SWG) | 18 to 6 Gauge | 18 to 6 Gauge |
| Wire Diameter | 1.2 to 4.8 mm | 1.2 to 4.8 mm |
| Length of ‘U’ Nail | 1/2″ to 1-1/2″ (15 to 40 mm) | 1/2″ to 1-1/2″ (15 to 40 mm) |
| Distance Between Ends | 6 to 12 mm | 6 to 12 mm |
| Production Capacity | 125 to 150 ‘U’ Nails per Minute | 200 to 250 ‘U’ Nails per Minute |
| Motor | 2.0 HP | 3.0 HP |
| Net / Gross Weight | 275 / 450 kilos | 325 / 500 kilos |
| Approx. Dimensions | 1.60 x 0.90 x 1.10 m | 2.00 x 0.90 x 1.10 m |
| Shipping Volume | 1.60 m3 | 2.00 m3 |
Standard Accessories
- Elec. Motor
- De-Coiler Stand
- On/ Off Switch
- Safety Guard
- Lubrication Pump
- Operational Manual
Salient Features
- Heavy Duty Machine Structure
- Easy to Operate
- Equipped with Necessary Safety Features
- Best Suited for Mass Productions
- A Must Machine with Barbed Wire or Chain Link Fencing Machine
