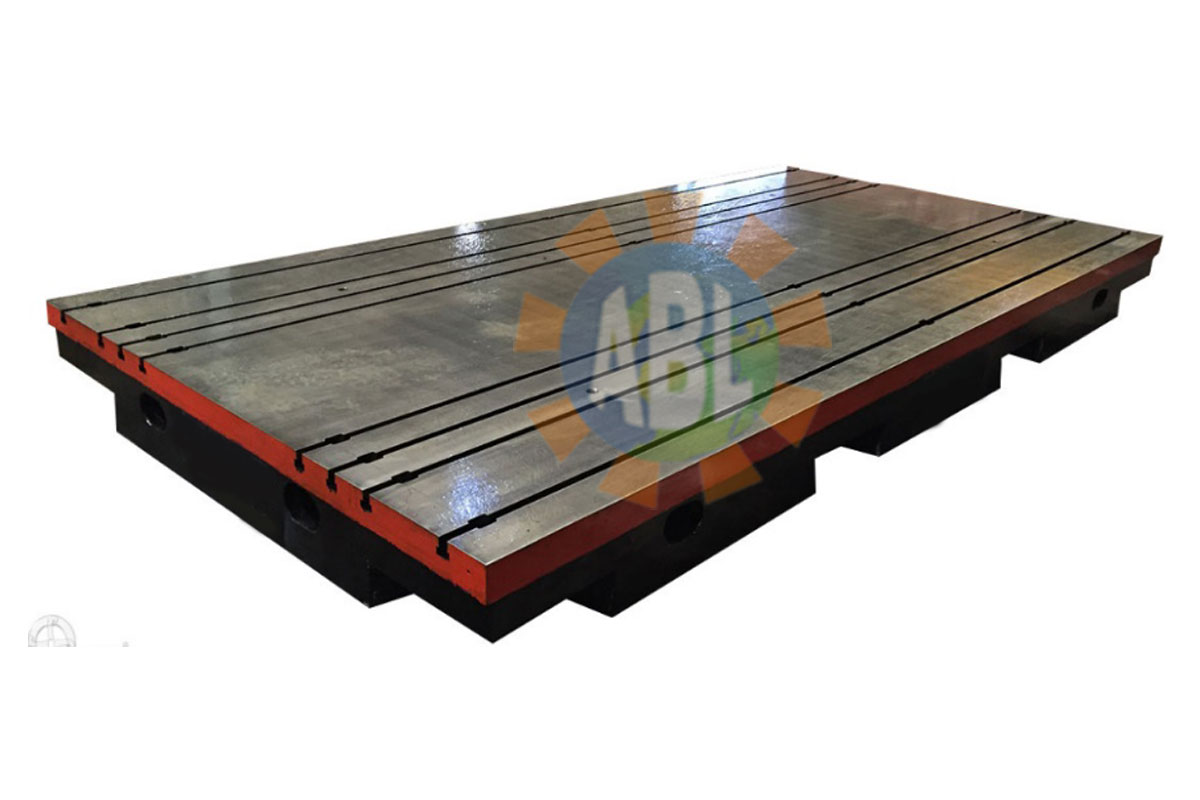

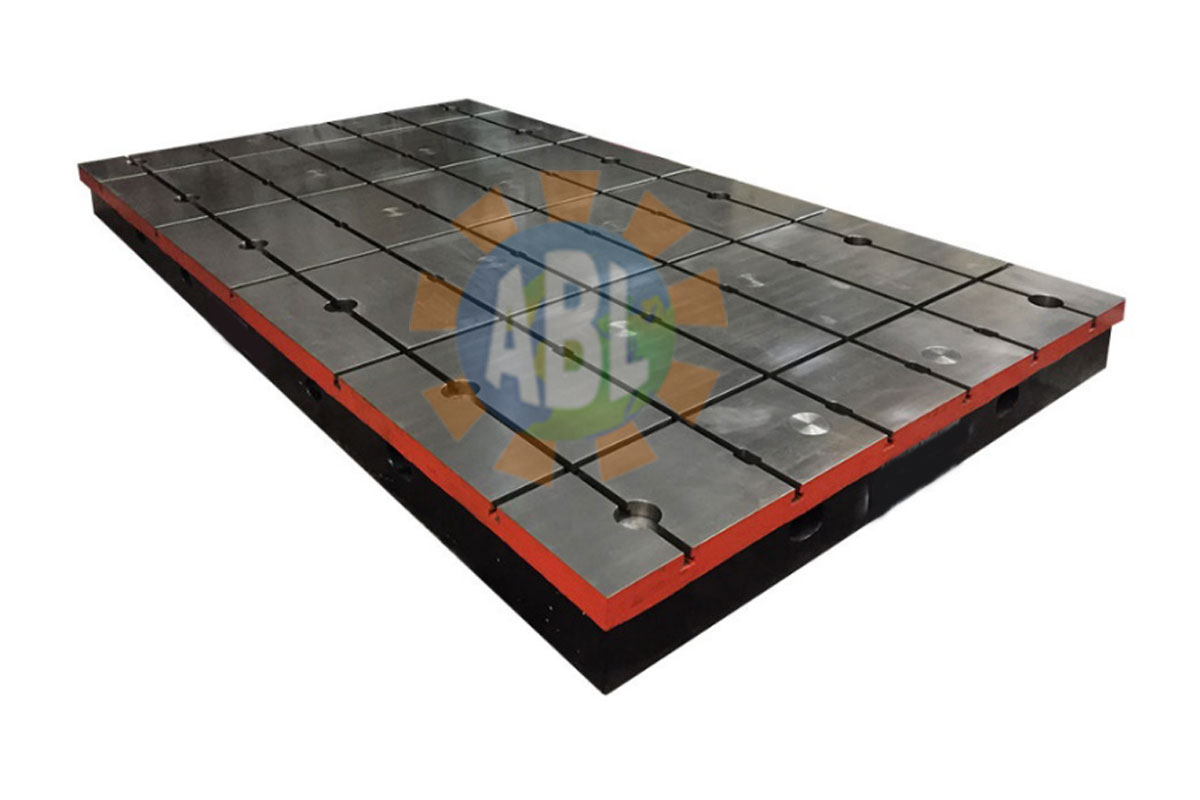

T-SLOTTED BED PLATE / FLOOR PLATE / CLAMPING PLATE
Iron T-Slotted Bed Plates / Floor Plates are being used in various industries for varied application like mounting of large jobs while machining, used as precision base for Marking, Inspection, Assembly, Fabrication, checking accuracy of other surfaces and many other types of operations. Our Plates are manufactured completely in house, with world class manufacturing facility equipped with CNC machines, starting from Design, Casting, Machining and till finish and packing to ensure product quality, with international standards like IS and DIN having Cored and ribbed construction, Cast Iron of grade starting from FG 200 (as per IS 210) OR GG-20 to FG-300 OR GG-30 (or higher) having hardness minimum 160 BHN.
Product Specifications
| STANDARD SIZES [L x B] | ||
|---|---|---|
| 1000 x 1000 | 3000 x 1500 | 4000 x 2500 |
| 1500 x 1000 | 3000 x 2000 | 4000 x 3000 |
| 1500 x 1500 | 3000 x 2500 | 5000 x 1500 |
| 2000 x 1000 | 3000 x 3000 | 5000 x 2000 |
| 2000 x 1500 | 3500 x 1500 | 5000 x 2500 |
| 2000 x 2000 | 3500 x 2000 | 6000 x 1000 |
| 2500 x 1000 | 3500 x 2500 | 6000 x 1500 |
| 2500 x 1500 | 3500 x 3000 | 6000 x 2000 |
| 2500 x 2000 | 4000 x 1000 | 6000 x 2500 |
| 2500 x 2500 | 4000 x 1500 | 4000 x 2500 |
| 3000 x 1000 | 4000 x 2000 | 4000 x 3000 |
| 1000 x 1000 | 3000 x 1500 | |
| 2500 x 1000 | 3000 x 2000 | |
Note: *Other sizes & combinations can be manufactured as per requirement.
*Large sizes can be made by joining plates along sides together to make required overall area.
Salient Features
- Profiles: Generally provided with T-slots sizes 14, 18, 22, 28, 36 or 42 mm conforming to IS:2013 / DIN 650 in tolerance from H12 to H7. Holes, square slots, guiding slots or other profiles on top as well as sides may be provided as per requirement of customers.
- Stress Relieving: Bed Plates shall be manufactured with castings duly stress relieved, after rough machining to prevent distortion.
- Height: Our plates shall be manufactured in various heights 150, 175, 250, 300, 350, 400, 450, 500mm depending upon application and load carrying capacity Starting from 1 ton/m2 to 150 tons/m2.
- Flatness Accuracy: Grade I, II or III as per DIN-876 OR as per IS-10602.
- Surface Finish: CNC finish or Hand Scrapped finish can be provided as per requirement.
- Installation & Commissioning Accessories: Plates shall be provided with suitable Levelling & Anchoring accessories or Floor Stand as per requirement of customer.
