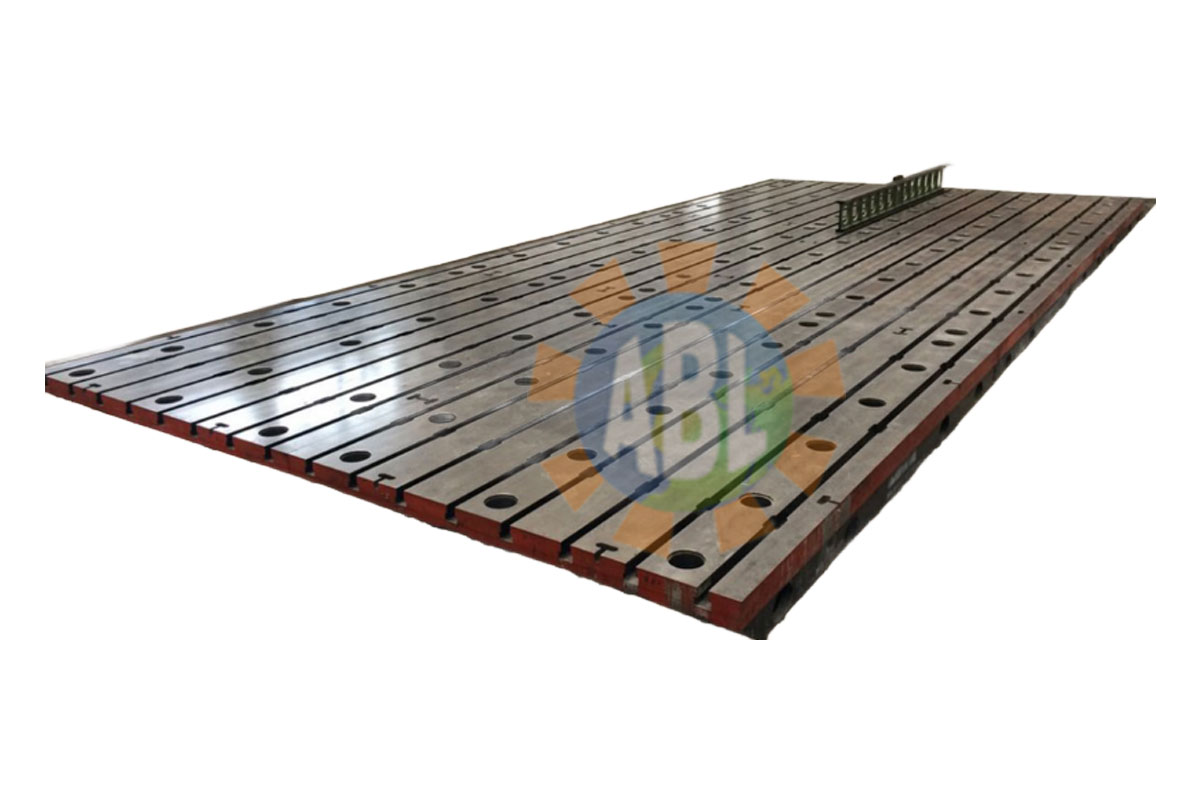

Cast Iron, Test Bed Plates
T-SLOTTED / FLOOR MOUNTED
Application Areas
Automotive, Heavy Engineering for varied application Like Engine Testing, Motor Testing, Generator Testing, Gear Box Testing, Steering System Testing and Components Testing
Cast Iron T-Slotted Test Beds Plates are being used as base in various Industries like Automotive, Heavy Engineering for varied application Like Engine Testing, Motor Testing, Generator Testing, Gear Box Testing, Steering System Testing and components testing.
The Test Beds manufactured completely in house, with world class manufacturing facility equipped with CNC machines, starting from Design, Casting, Machining and till finish and packing to ensure product quality, with international standards like IS and DIN having Cored and ribbed construction, Cast Iron of grade starting from FG 200 (as per IS 210) OR GG-20 to FG-300 OR GG-30 (or higher) having hardness minimum 160 BHN.
Product Specifications
| STANDARD SIZES [L x B] | |
|---|---|
| 1000 x 1000 | 4000 x 1000 |
| 1500 x 1000 | 4000 x 1500 |
| 1500 x 1500 | 4000 x 2000 |
| 2000 x 1000 | 4000 x 2500 |
| 2000 x 1500 | 4000 x 3000 |
| 2000 x 2000 | 5000 x 1500 |
| 2500 x 1000 | 5000 x 2000 |
| 2500 x 1500 | 5000 x 2500 |
| 2500 x 2000 | 6000 x 1000 |
| 2500 x 2500 | 6000 x 1500 |
| 3000 x 1000 | 6000 x 2000 |
| 3000 x 1500 | 6000 x 2500 |
| 3000 x 2000 | 7000 x 2000 |
| 3000 x 2500 | 7000 x 2500 |
| 3000 x 3000 | 8000 x 2000 |
| 3500 x 1500 | 8000 x 2500 |
| 3500 x 2000 | 9000 x 2000 |
| 3500 x 2500 | 9000 x 2500 |
| 3500 x 3000 | 10000 x 2500 |
Note: *Other sizes & combinations can be manufactured as per requirement.
*Large sizes can be made by joining plates along sides together to make required overall area.
Salient Features
- Profiles: Generally provided with T-slots sizes 14, 18, 22, 28, 36 or 42 mm conforming to IS:2013 / DIN 650 in tolerance from H12 to H7. Holes, square slots, guiding slots or other profiles on top as well as sides may be provided as per requirement of customers.
- Mounting: Based on mounting Test Beds can be manufactured in majorly two types
- With levelling and anchoring arrangement to be directly mounted on the floor or seismic mass foundation.
- With machined Pad on bottom of Test Bed to be mounted on air springs or mechanical springs. - Profiles: Generally provided with T-slots sizes 14, 18, 22, 28, 36 or 42 m
- Stress Relieving: Test Beds shall be manufactured with castings duly stress relieved, after rough machining to prevent distortion.
- Height: Jagdeep Test Beds shall be manufactured in various heights 150, 175, 250, 300, 350, 400, 450, 500mm depending upon application and static loading & dynamic loading.
- Flatness Accuracy: Grade I, II or III as per DIN-876 OR as per IS-10602.
- Surface Finish: CNC finish or Hand Scrapped finish can be provided as per requirement.
- Installation & Commissioning Accessories: Plates shall be provided with suitable Levelling & Anchoring accessories or Floor Stand as per requirement of customer.
