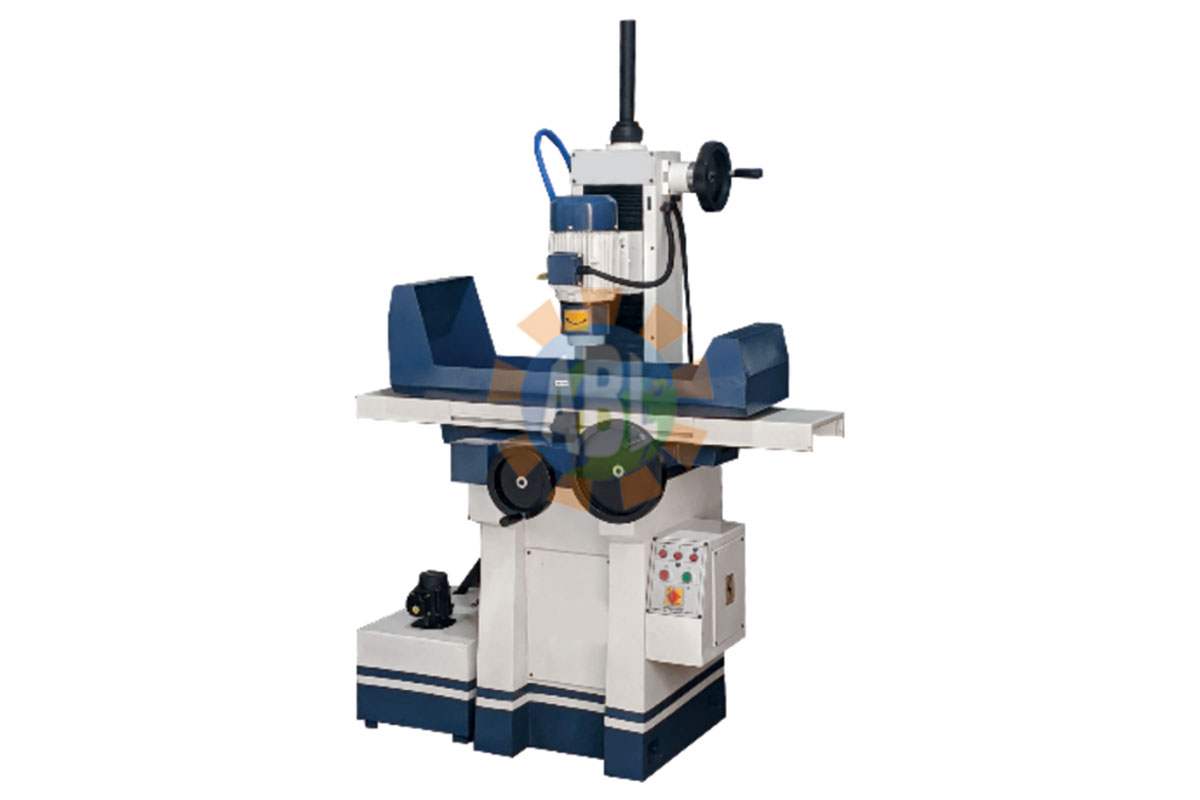

Manual, Vertical Surface Grinding Machine
ECONOMICAL SERIES / MANUAL-MECHANICAL MODEL/ GENERAL WORKSHOP PURPOSES
MANUAL Vertical Surface Grinder Machines (Manual Cup Grinders) are designed for quick flat grinding of workpieces, for Production of a variety of components like tool bits, ball bearing, engine blocks, gears, machine frames, valve plates, large saw blades etc.
Product Specifications
| MODELS | VSG-M4015 | VSG-M4020 | VSG-M5025 | VSG-M6030 |
|---|---|---|---|---|
| Working Surface of Table | 400 x 150 MM | 400 x 200 MM | 500 x 250 MM | 600 x 300 MM |
| Grinding Length x Width | 450 x 150 MM | 500 x 200 MM | 600 x 250 MM | 600 x 300 MM |
| Maximum Distance Between Table & Spindle Center | 200 MM | 250 MM | 250 MM | 250 MM |
| Max. Long. Table Movement | 450 MM | 500 MM | 500 MM | 600 MM |
| Max. Cross Table Movement | 150 MM | 200 MM | 250 MM | 300 MM |
| Cross Feed Rate/Turn (Manual) | 5 MM | 5 MM | 5 MM | 5 MM |
| Least Count of Hand Wheel (Vertical) | 0.05 MM | 0.05 MM | 0.05 MM | 0.05 MM |
| Vertical Feed Rate/ Turn (Manual) | 1 MM | 1 MM | 1 MM | 1 MM |
| Grinding Wheel Diemeter | 100 MM | 100 MM | 100 MM | 100 MM |
| Wheel RPM | 2800 | 2800 | 2800 | 2800 |
| Grinding Spindle Motor | 2 HP | 2 HP | 2 HP | 2 HP |
| Coolant Pump | 0.1 HP | 0.1 HP | 0.1 HP | 0.1 HP |
| Cup Size φ | 100 MM | 150 MM | 150 MM | 200 MM |
Standard Accessories
- Electrical Motors & Panel
- Machine Lamp & Lub. Pump
- Push Button Operational Pendent
- Foundation Bolt Kit
- Operational Manual
Optional Accessories
- Coolant Pump with Magnetic Separator
- 2 or 3 Axes Digital Readout System
- Permanent Magnetic Chuck/Table
- Electro-Magnetic Chuck
- 2 Years Normal Maintenance Spare Set
- Precision Machine Vice
Salient Features
- Rigid Machine Construction with Graded Casting
- Enlarged, honeycomb-ribbed columns, especially suitable for heavy duty grinding.
- High Precision Cartridge Type Spindle
- Well designed & balanced body to minimize the machine vibrations during grinding operation
Video Gallery

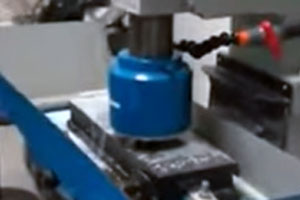

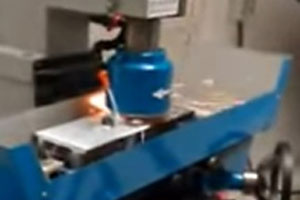

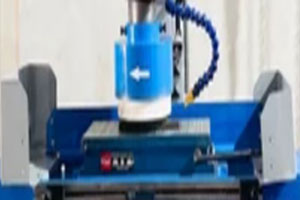

Image Gallery
