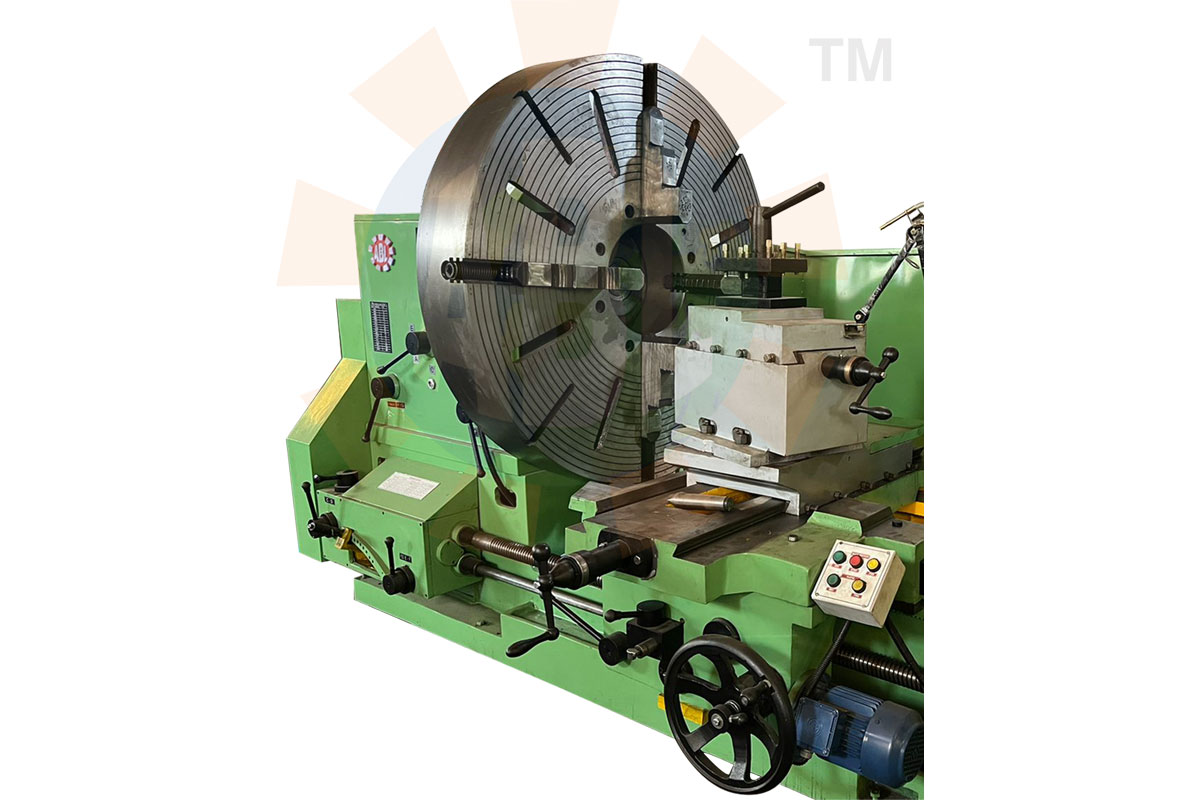

Heavy Duty, Facing Lathe Machines
LARGE SWING DIAMETER OVER BED, BIG SIZED CHUCK
Heavy Duty, Facing Lathe is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mould, etc. This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on. TAIL Stock Unit on Bed can also be provided as an option.
Product Specifications
| MODEL | FL-1272 | FL-1282 | FL-1290 | FL-12100 | FL-12106 | FL-12110 |
|---|---|---|---|---|---|---|
| Swing in Gap | 72” | 82” | 90” | 100” | 106” | 106” |
| Bed Length | 12’ | 12’ | 12’ | 12’ | 12’ | 16’ |
| Width of Bed | 30” | 32” | 36” | 40” | 42” | 42” |
| Centre Height | 28” | 30” | 34” | 38” | 40” | 40” |
| Spindle Bore | 4 1/8” | 4 1/8” | 4 1/8” | 4 1/8” | 4 1/8” | 4 1/8” |
| Swing Over Bed | 56” | 60” | 68” | 76” | 80” | 80” |
| Spindle Speed | 6 | 6 | 6 | 6 | 6 | 6 |
| HP Required | 10 HP | 10 HP | 10 HP | 15 HP | 15 HP | 20 HP |
Standard Accessories
- Large Diameter 4 Jaw Chuck
- On/ Off Switch
- Quick Change Tool Post
- Allen Key Set
- Chuck Key
- Foundation Bolt Kit
- Oil Can
- Machine Light
Optional Accessories
- TAIL Stock Unit
- Steady
- Follow Rest
- Coolant System
- Bellow Covers
- Push Button Operator’s Pendent
- Digital Readout System
- Spindle Motor Brake
- 2 Years Normal Maintenance Spares
