Planer Cum Plano Miller Machine
2 in 1 MACHINE FOR SURFACE PLANNING OR MILLING OPERATIONS / KEYWAYS / SLOTS / SURFACE FINISHING
Planer Cum Plano Miller Machines are used to remove unwanted material from a workpiece to produce a flat surface on it. These are capable of working both on Planer Mode or Plano Milling Mode through convenient Table Speed Shifting Mechanism. These machines can perform a variety of operations such as planning, keyway making, surface milling – flat horizontal surfaces, flat vertical surfaces, angular surfaces.
Product Specifications
| MODELS | PPM-6 | PPM-8 | PPM-12 | PPM-14 | PPM-18 | PPM-24 | PPM-30 |
|---|---|---|---|---|---|---|---|
| PLANO MILL FEATURES | |||||||
| No. of Milling Head on Cross Rail | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Mill Head Motor Capacity | 3 | 3 | 7.5 | 7.5 | 10 | 15 | 15 |
| Milling Spindle Speed & Range | 120-500 | 120-500 | 100-450 | 100-450 | 100-400 | 75-300 | 75-300 |
| Milling Cutter Diameter | 125 | 125 | 150 | 150 | 200 | 300 | 300 |
| Cutting Speed (Per Min.) | 200-250 | 200-250 | 200-250 | 200-250 | 200-250 | 200-250 | 200-250 |
| Milling Head Swivelling | ±30˚ | ±30˚ | ±30˚ | ±45˚ | ±45˚ | ±45˚ | ±45˚ |
| PLANNER FEATURES | |||||||
| No. of Tool Post on Cross Rail | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Cutting Speed (Per Min.) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Return Speed (Per Min.) | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Tool Post Swivelling | ±30˚ | ±30˚ | ±30˚ | ±45˚ | ±45˚ | ±45˚ | ±45˚ |
| OTHER SPECIFICATIONS | |||||||
| Overall Length of Bed MM (Ft.) | 1830 (6’) | 2740 (8’) | 3660 (12’) | 4520 (14’) | 5500 (18’) | 7320 (24’) | 9150 (30’) |
| Length of Table | 1370 | 1980 | 2600 | 3200 | 3800 | 5030 | 6400 |
| Width of Table | 610 | 685 | 790 | 840 | 910 | 910 | 1120 |
| Stroke Length / Table Travel | 1220 | 1830 | 2440 | 3050 | 3660 | 4800 | 6010 |
| Max. Height under Cross Rail | 760 | 914 | 1220 | 1370 | 1520 | 1520 | 1620 |
| Max. Planing/ Milling Width | 760 | 914 | 1220 | 1370 | 1520 | 1520 | 1620 |
| Main Table Drive Motor (HP) | 2 | 3 | 5 | 7.5 | 7.5 | 10 | 20 |
| Approx. Weight (Kg) | 3000 | 4000 | 6000 | 7500 | 10200 | 14000 | 24000 |
Note: * All dimensions are in MM, unless specified. Higher Sizes shall be provided on request.
Standard Accessories
- 1 No. Tool Post for Planning
- 1 No. Mill Head on Cross Rail
- Electrical Motors & Panel
- Coolant System & Machine Lamp
- Drive Belt with Guards
- Maintenance Tool Box
- Operational Manual
- Foundation Bolt Kit
Optional Accessories
- Milling Head on Side Column
- Universal 90˚ Side Milling Attachment for Top Mill Head
- Centralized Lubrication System
- Drilling Head on Cross Rail
- Grinding Head on Cross Rail
Salient Features
- Heavy & Cross Ribbed Bed Structure
- Graded Cast Iron Machine Construction
- Precision Slots on Table
- Belt & Wheel Guard for Operator Safety
- Convenient Table Speed Shifting Mechanism for Planner or Milling Operations
- Movable Operation Push Button Pendent
Video Gallery

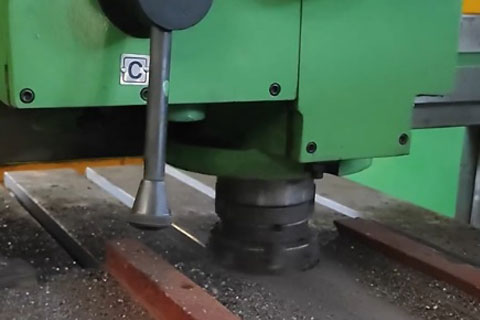

Image Gallery

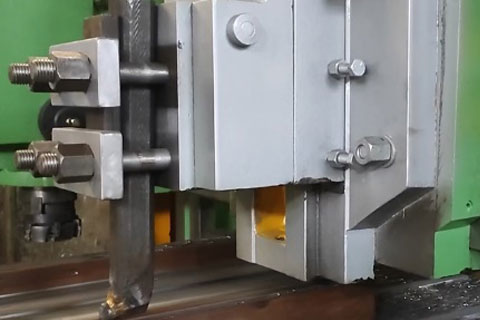

Planing Operation View
