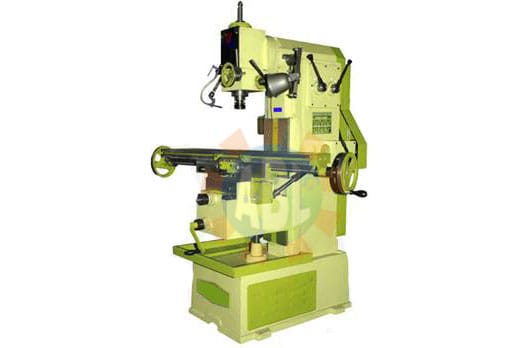

Vertical Milling Machine
ECONOMICAL SERIES / BELT DRIVEN POWER FEED / GENERAL WORKSHOP PURPOSES
Semi-Automatic, Vertical Milling Machine for general workshop purposes. Power is supplied by a suitable electric motor through Vee-Belts which are full adjustable for tension all drive mechanism being totally enclosed.
Product Specifications
| MODEL | VM-N 0 | VM-N 0A | VM-N 1 | VM-N 1.5 | VM-N 2 | VM-N 3 |
|---|---|---|---|---|---|---|
| Surface of Table | 25″x7″ | 30″x7″ | 40″x9″ | 48″x10″ | 50″x11″ | 56″x12″ |
| No. of Tee Slots | 3 | 3 | 3 | 3 | 3 | 3 |
| Sizes of Tee Slots | 3/8” | 3/8” | ½” | ½” | ½” | 5/8” |
| Cross Feed | 5″ | 6″ | 7″ | 8″ | 11″ | 13″ |
| Longitudinal | 13″ | 14″ | 20″ | 22″ | 25″ | 27″ |
| Vertical Traverse | 12″ | 13″ | 13″ | 17″ | 22″ | 26″ |
| Speed Range (rpm) | 30 – 600 | 45 – 550 | 65 – 345 | 40 – 875 | 40 – 875 | 30 – 675 |
| Main Motor (HP) | 1 | 1 | 1 | 2 | 3 | 3 |
| Standard Arbor | 1″ | 1″ | 1″ | 1″ | 1″ | 1″ |
| No. of Speeds | 3 | 6 | 6 | 9 | 9 | 9 |
| Taper of Spindle | MT-2 | ISO 40 | ISO 40 | ISO 40 | ISO 40 | ISO 40 |
Standard Accessories
- Elec. Motor
- Motor Drive Belt & Pulley
- Inbuilt Coolant Pump & Assembly
- Belt Guard
- Arbor
- Foundation Bolt Kit
- On/Off Switch
- Inst. & Maint. Manual
- Spanner Set
- Allen Key Set
- Oil & Grease Can
Optional Accessories
- Vertical Milling Head Attachment
- Dividing Head
- Rotary Table
- Rack Cutting Attachment
- Slotting Attachment
- Digital Readout System
- Push Button Type Control Pendent
- Guide ways protection Bellow Covers
