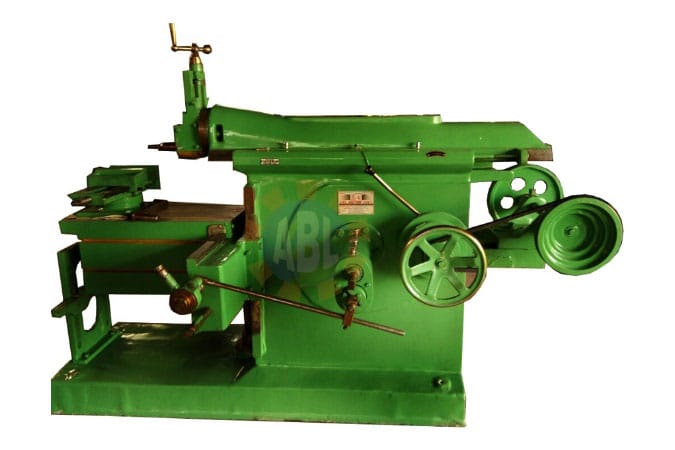

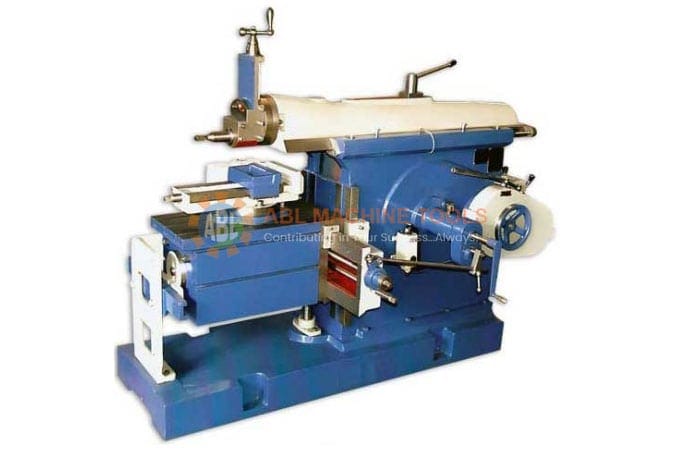

Belt-Driven Shaping Machine
METAL SHAPING ON DIFFERENT PLANES, GEAR CUTTING, INTERNAL/EXTERNAL KEYWAY MAKING
V-BELT DRIVEN, Cone Pulley Type Shaping Machines, the most versatile and important machine, used in production and maintenance centres. RAM Speed variations can be made shifting the belt positions on the pulleys. It’s an economical option to the All Geared Shaping Machine & more preferred in traditional workshops seeking shaping machine at low costs.
Product Specifications
| MODEL | ABL(B)-20” | ABL(B)-26” | ABL(B)-30” | ABL(B)-36” | ABL(B)-40” |
|---|---|---|---|---|---|
| Max. Working Stroke | 20” | 26” | 32” | 36” | 42” |
| RAM Length | 42” | 52” | 60” | 66” | 78” |
| RAM Bearing in Column | 26” | 32” | 38” | 42” | 45” |
| Tool Slide Traverse | 6” | 8” | 9” | 10” | 14” |
| Distance Table to RAM – Maximum – Minimum | 15” 2” | 16” 2” | 18” 2” | 20” 2” | 24” 2” |
| Horizontal Table Traverse | 20” | 28” | 30” | 32” | 36” |
| No. of RAM Speed | 3 | 4 | 4 | 4 | 4 |
| Table Top Surface (L x W) | 20” x 12” | 25” x 15” | 30” x 16” | 36” x 16” | 40” x 20” |
| Base Plate Size | 50” x 22” | 64” x 23” | 76” x 26” | 85” x 28” | 92” x 30” |
| Main Motor | 2 HP | 2 HP | 3 HP | 5 HP | 5 HP |
Standard Accessories
- Electricals with ON/OFF Switch
- Machine Lamp & Lub. Pump
- Belt Pully Guard
- Foundation Bolt Kit
- Operational Manual
Optional Accessories
- Coolant Pump with Tank Assy.
- Machine Vice
- 2 Years Normal Maintenance Spares
Salient Features
- Rigid Machine Construction with Graded Casting
- Quick Return RAM Movement to save Idle time
- Ideal for Training & Workshop Purposes
- Well designed & balanced body to minimize the machine vibrations during cut operation
