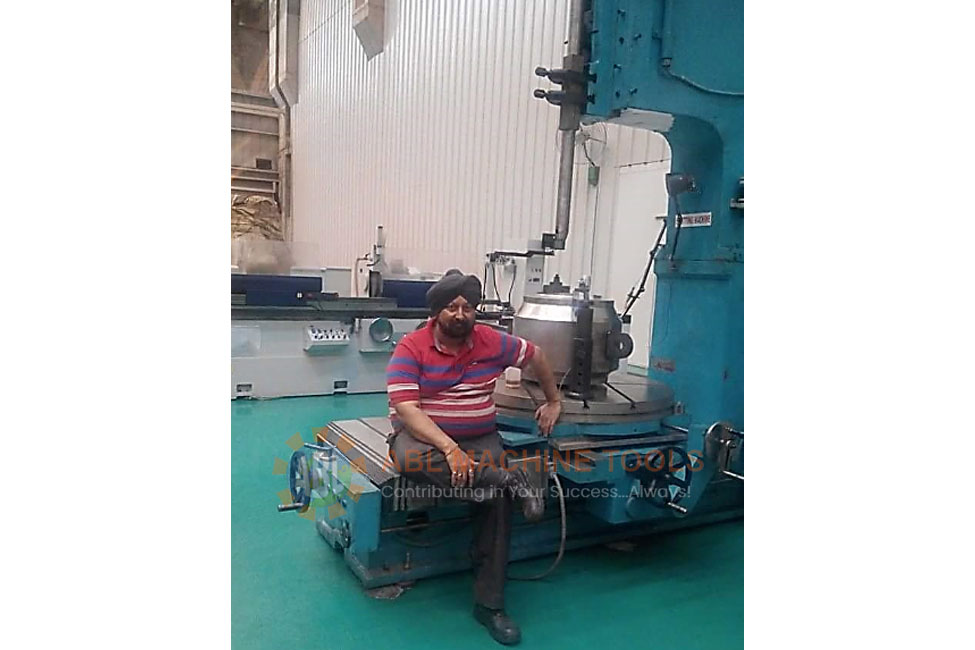

Slotting Machines

METAL SHAPING ON DIFFERENT PLANES / WITH AUTO FEEDS / GEAR CUTTING / INTERNAL-EXTERNAL SLOT MAKING

slotting-machines-1

Heavy Duty, All Geared Slotting Machines with auto-feeds, are most useful in cutting keys, slots, metal sheets, grooves of various shapes and forming regular or irregular shapes used in many manufacturing units. It can be used in any workshop where vertical tool movement is necessary and required to manufacture different metal objects.

Product Specifications

MODEL	S-6	S-8	S-10	S-12	S-14	S-16	S-18	S-20	S-24	S-30	S-36	S-40
Max. Stroke Length	150	200	250	300	350	400	450	500	600	750	900	1000
Rotary Table	250	330	250	380	460	500	600	750	750	775	1000	1200
Longitudinal Movement	200	250	230	300	350	400	560	600	600	660	700	750
Cross Movement	110	200	230	250	300	330	460	500	500	500	500	550
No. of Ram Speeds	4	4	4	4	4	4	4	4	4	4	4	4
Ram Adjustment	150	250	250	300	300	400	450	550	550	700	800	1000
Throat Depth	310	370	410	430	480	500	500	750	750	1000	1000	1250
Main Motor [in H.P]	1	1.5	2	3	3	5	5	7.5	7.5	10	15	20
Dist. from Tool to Column Face	210	300	330	380	400	450	560	600	600	625	800	1000
