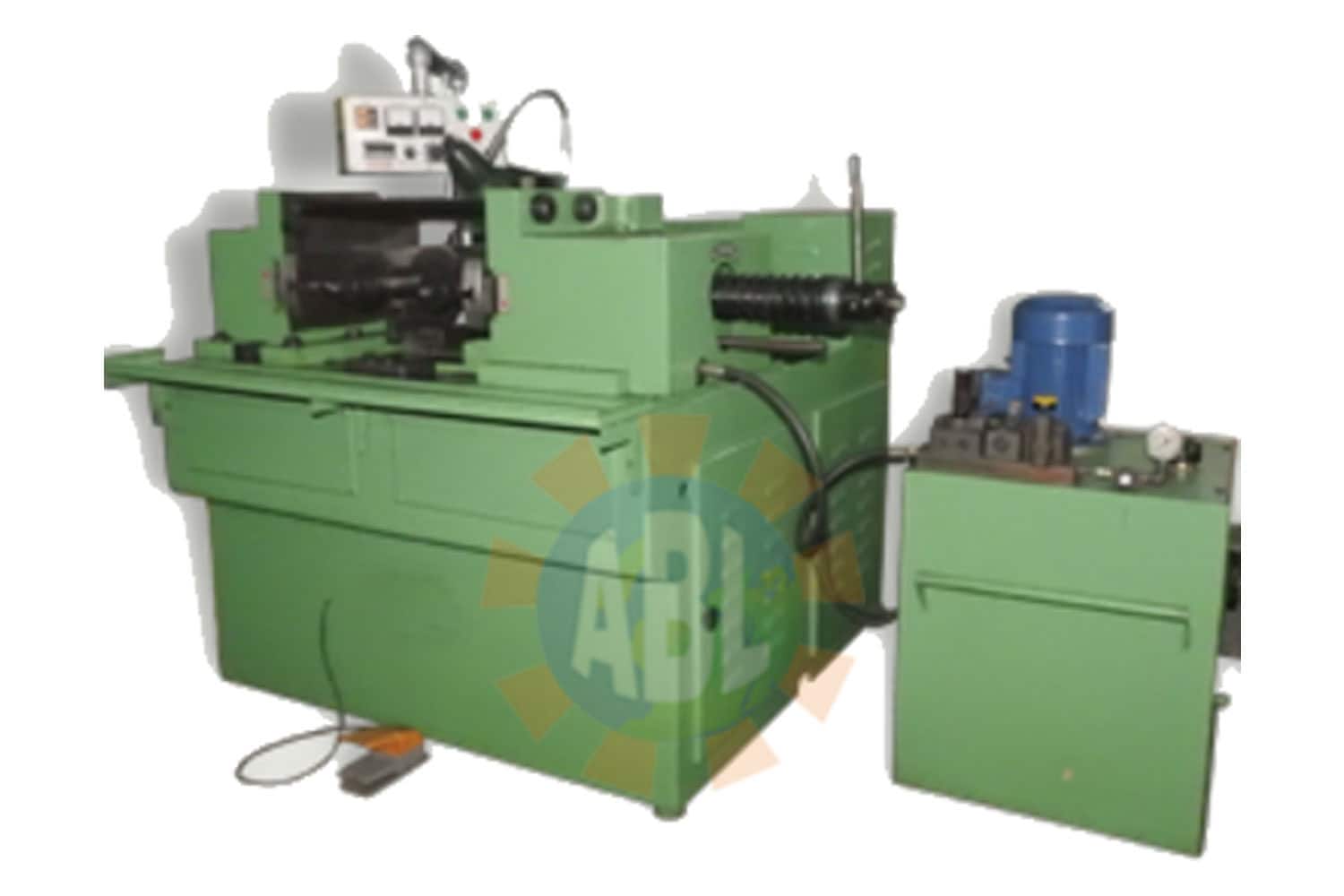

Hydraulic Thread Rolling Machine
THREAD FORMING BY HYDRAULIC PRESSING / PRECISE THREADS / MASS PRODUCTION / ROD THREADING

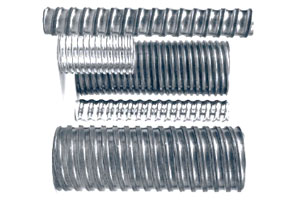

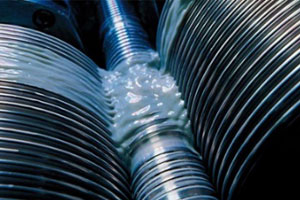

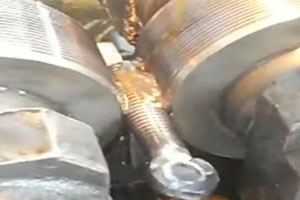

HYDRAULIC THREAD Rolling Machine is a Powerful Thread Making Machine, permits deep forming of threads, Worms, Serrations, Knurls without cutting steel chips. Threads are formed by the powerful hydraulic pressure on the job. Most suitable for mass production & could be operated even by an unskilled worker.
Product Specifications
| MODEL | HTR-1 | HTR-2 | HTR-3 | HTR-4 | HTR-5 | HTR-6 |
|---|---|---|---|---|---|---|
| Max. Pitch Can Be Rolled | 2.5 | 3.5 | 4.0 | 5.0 | 5.5 | 8.0 |
| Max. Dia Can Be Rolled in Feed | 25 | 40 | 50 | 80 | 100 | 120 |
| Max. Dia Can Be Rolled Through Feed | 18 | 28 | 35 | 40 | 50 | 70 |
| Max. Rolling Length in Feed | 80 | 100 | 150 | 150 | 150 | 150 |
| Max. Rolling Length Through Feed | Indefinite | |||||
| Max. Outer Dia. Thread Rolled | 120 | 180 | 180 | 180 | 200 | 220 |
| Spindle Dia. / Bore Dia. | 40 | 54 | 54 | 69.85 | 76.20 | 76.20 |
| Max. Width Thread Rolls | 80 | 100 | 140 | 150 | 150 | 150 |
| Max. Rolling Force (Tons) | 8 | 12 | 15 | 24 | 30 | 40 |
| Roll Spindle Motor (HP) | 3 | 5 | 7.5 | 10 | 12.5 | 20 |
| Hydraulic Sys. Motor (HP) | 2 | 2 | 5 | 5 | 7.5 | 7.5 |
| Coolant Pump Motor (HP) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
Standard Accessories
- Hydraulic Power Pack
- Elec. Motors
- Thread Die Roll Set (1 No.)
- Push Button Control Pendent
- Machine Light
- Foundation Bolt Kit
- Lubrication Pump
- Instruction & Maintenance Manual
Optional Accessories
- Extra Set of Thread Die Rolls
Salient Features
- Powerful constructions Permits deep forming of threads, worm serrations Knurls.
- Rigidity & Simplicity: Graded Casting Hardened and duly scrapped slide also the easy adjustment of machines as well as tooling enables an unskilled labour to operate the machine.
- Machine is very much suitable for mass production and best surface finishes
